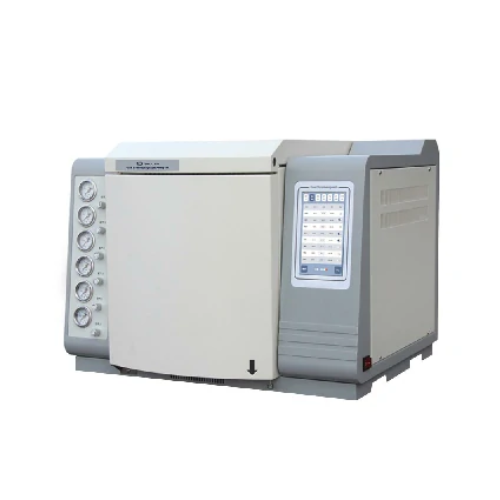

Zhiwei ZWGC708 Gas Chromatograph Analyzer (0 ~ 0.3MPa)

operation: 192*64 periodic lattice Chinesize liquid crystal

temperature control area: 6 ways

temperature: room temperature above 5 ℃ ~ 400 ℃, increment:1 ℃, accuracy :± 0.1 ℃

temperature-programmed order: 8 order

programming rate: 0.1 ~ 39 ℃ /min (common type); 0.1 ~ 80 ℃ /min (high speed)

the gas control: optional pressure flow control mode of the mechanical valve control mode, electronic

gas pressure, flow measurement: pointer type pressure meter or electronic pressure, flow pattern

● all electronic gas pressure, flow measurement system

The single module maximum measuring way: 16

Range:0 ~ 0.3MPa (pressure); 0 ~ 500sccm (flow)

Resolution: 0.01kPa (pressure); 0.01sccm (flow)

EPC, EFC work mode: 3kinds: constant current mode, constant voltage mode

EPC, EFC working gas: 4kinds:nitrogen, air, hydrogen, helium, argon

● EPC, EFC L: 4 order

EPC, EFC: pressure control range: 0 ~ 0.6MPa; flow rate of 0 ~ 100sccm or 0 ~ 500sccm (air)

EPC, EFC control precision pressure 0.01kPa; flow rate: 0.01sccm;

external events: 4 road, 4 road; auxiliary control output

injector types: packed column sample, the capillary inlet, six valve gas sampling, automatic headspace sampling.

detector number: 3 (max); FID, TCD, ECD, FPD and NPD.

start sampling: manual, automatic optional

communication interface: Ethernet: IEEE802.3
