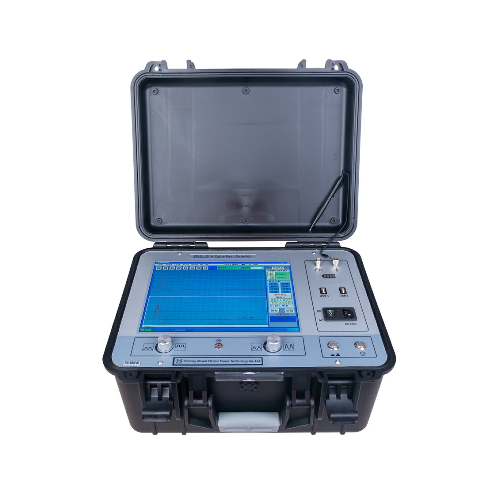

Zhiwei ZWDL501A Cable Fault Detector (15m~30km)
ManufacturerHB.ZHIWEI(View more products from this manufacturer)
ModelZWDL501A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Measuring method: TDR measurement method flashover sampling and impulse current method
Pulse amplitude: 150Vp-p
Pulse width: 0.1uS …2uS
Output impedance: 50Ώ
Resolution: 0.5m
Dynamic range: >80db
Measuring distance: 15m …30km
Dead zone: None
Accuracy of distance measurement: ±1%
Power supply: AC 220V+/-10% 50Hz/60Hz /DC Power supply
Data storage: 32 GB
Weight: 9.9kg
Dimensions: 490mm*350mm*210mm
Working conditions: temperature: -10 ℃ ~ +45 ℃ Relative humidity:90%
