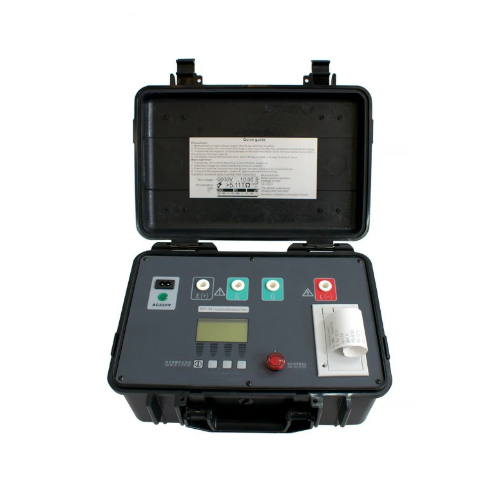

Zhiwei ZW1516-500V Insulation Resistance Tester (500V)

Measuring Range:15KV 15T ohm megohmmeter

Testing Voltage:11KV digital megohmmeter

Accuracy Class:±(3%+5)

Operating Temperature: T:23±5 ,RH :45-75%

Dimensions: 26cm x 20cm x 16cm

Product name: Digital High Voltage 15KV Megohm Meter

Application: Electric Test Kit Insulation Resistance Measurement

Function: Insulation Resistance Test,PI and DAR test

Power supply: AC 220V 50/60Hz; 16.8V Lithium ion rechargeable battery

Voltage Test Range: with 5 range: 500V, 1000V, 2500V, 5000V, 10000V

Resistance Test Range: up to 15T ohm

Short Circuit Current: 5mA

Safety Standard: IEC 61010-1 safety standards

Display: Digital Display

Weight: 3kg

accuracy/range:

+ unspecified / <100K

+ 5% / 100K-10G

+ 20% / 10G -100G

+ Unspecified / > 100G
