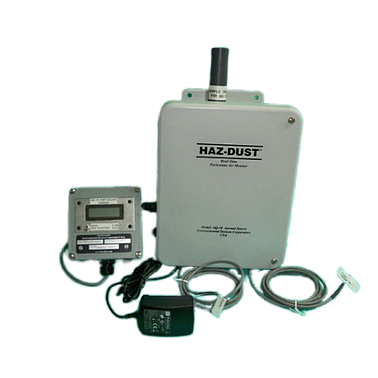

Haz-Dust AQ-10 Air Quality Particulate Sensor

Sensing Range:
0.01-200 mg/m3 (Standard); 0.1-2000 mg/m3 (Optional); 0.001-20 mg/m3 Optional)
Particle Size Range: 0.1-50[im Precision: 0.2% of full scale @ 25°C Or +/-0.004mg/m3 (0.001 range)
Power: 110 or 220VAC; 12VDC wall transformer (optional)
Signal Output: 4-2OmA or 0-2 volts (optional)
Alarm Output: 7 VDC
Operating Temp: 0 to 50°C
Humidity: 95% non-condensing
Dimensions: 13X19X10 cm
Weight: 1.4 k
Accessories: Calibration Standard, Precipitation Cap, Cleaning Kit

Catalog

OPTIONS:
NEMA    4X    Enclosure
Relay    Alarm
Explosion    Proof    Enclosure
Nitrogen    Purge
LCD    Display
Data    Acquisition    Module
Wireless    Signal    Processing -­‐Radio    Modem    Data
Transmission    up    to    1500ft.
