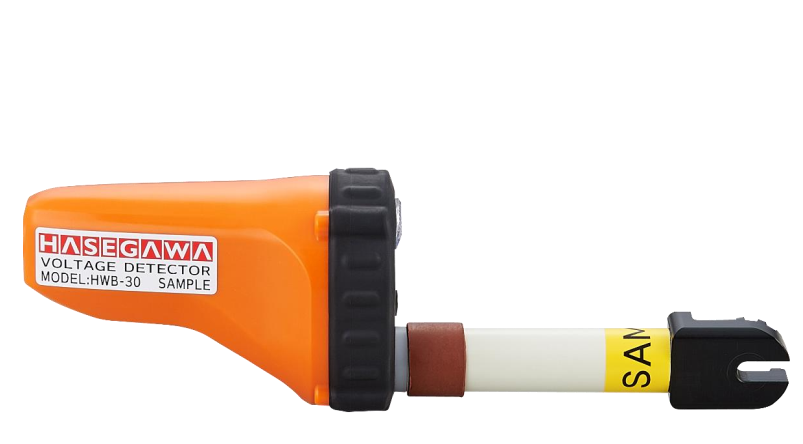

HASEGAWA HWB-30 Voltage Detector (AC 6～42 kV)

■ Specifications

Working voltage range: 6～42 kV AC

Indication:

- Sound: Intermittent sound 70dB or more (2m apart)

- Light:

+ Stand-by state : Green LED light

+ Operation state : Red LED flash light

(Flashing red light, distinguishable in brightness of 50,000lux)

Frequency: 50/60Hz

Design: Outdoor type

Water proof: Equivalent to IPX4

General design: Separate device

Operating temperature range: -10℃ ～ +40℃

Battery: R03 (1.5V) × 2pcs.

Accessory: Bag for housing

FEATURES:

・ FRP is used for the insulating stick. It is of lightweight and has outstanding operability
