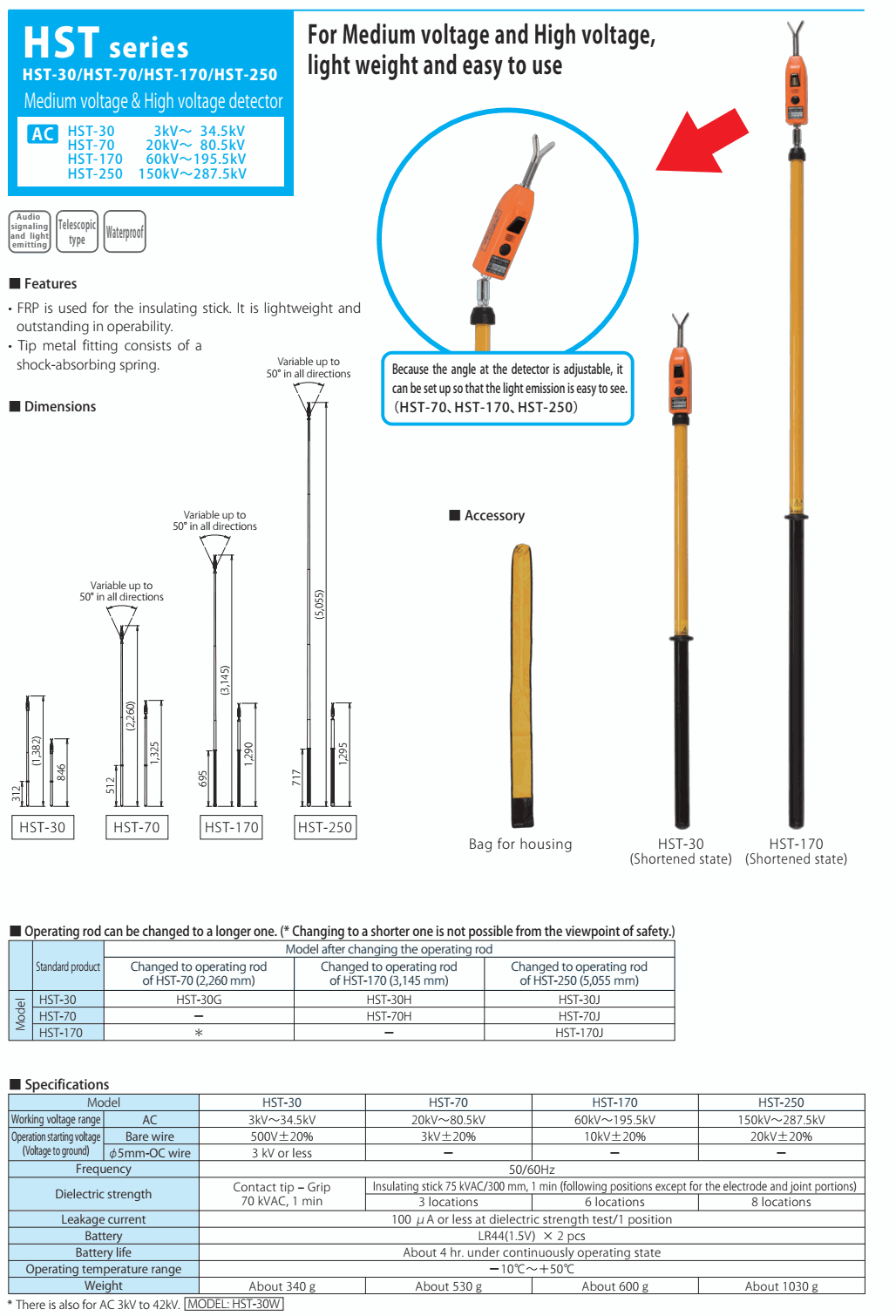

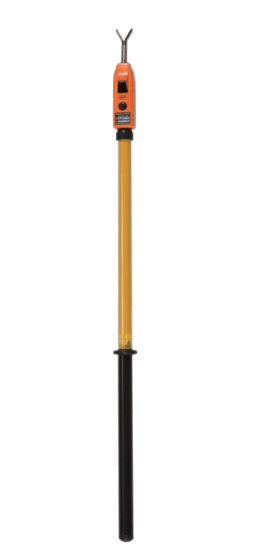

HASEGAWA HST-70 Medium Voltage & High Voltage Detector (20kV～80.5kV)

■ Specifications

Working voltage range: 20kV～80.5kV

Operation starting voltage (Voltage to ground): Bare wire: 3kV±20%

Frequency: 50/60Hz

Dielectric strength:

Insulating stick 75 kVAC/300 mm, 1 min (following positions except for the electrode and joint portions)

3 locations

Leakage current: 100 μA or less at dielectric strength test/1 position

Battery: LR44(1.5V) × 2 pcs

Battery life: About 4 hr. under continuously operating state

Operating temperature range: －10℃～＋50℃

Weight: About 530 g

■ Accessory: Bag for housing

■ Features

• FRP is used for the insulating stick. It is lightweight and outstanding in operability.

• Tip metal fitting consists of a shock-absorbing spring.
