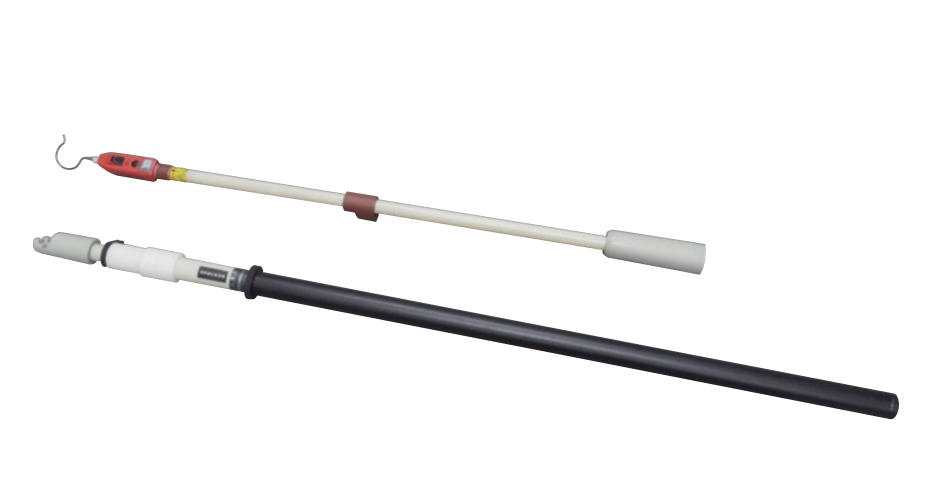

HASEGAWA HST-22JX Induced Voltage Detecting Instrument (AC 20kV)
ManufacturerHASEGAWA(View more products from this manufacturer)
ModelHST-22JX
OriginJapan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

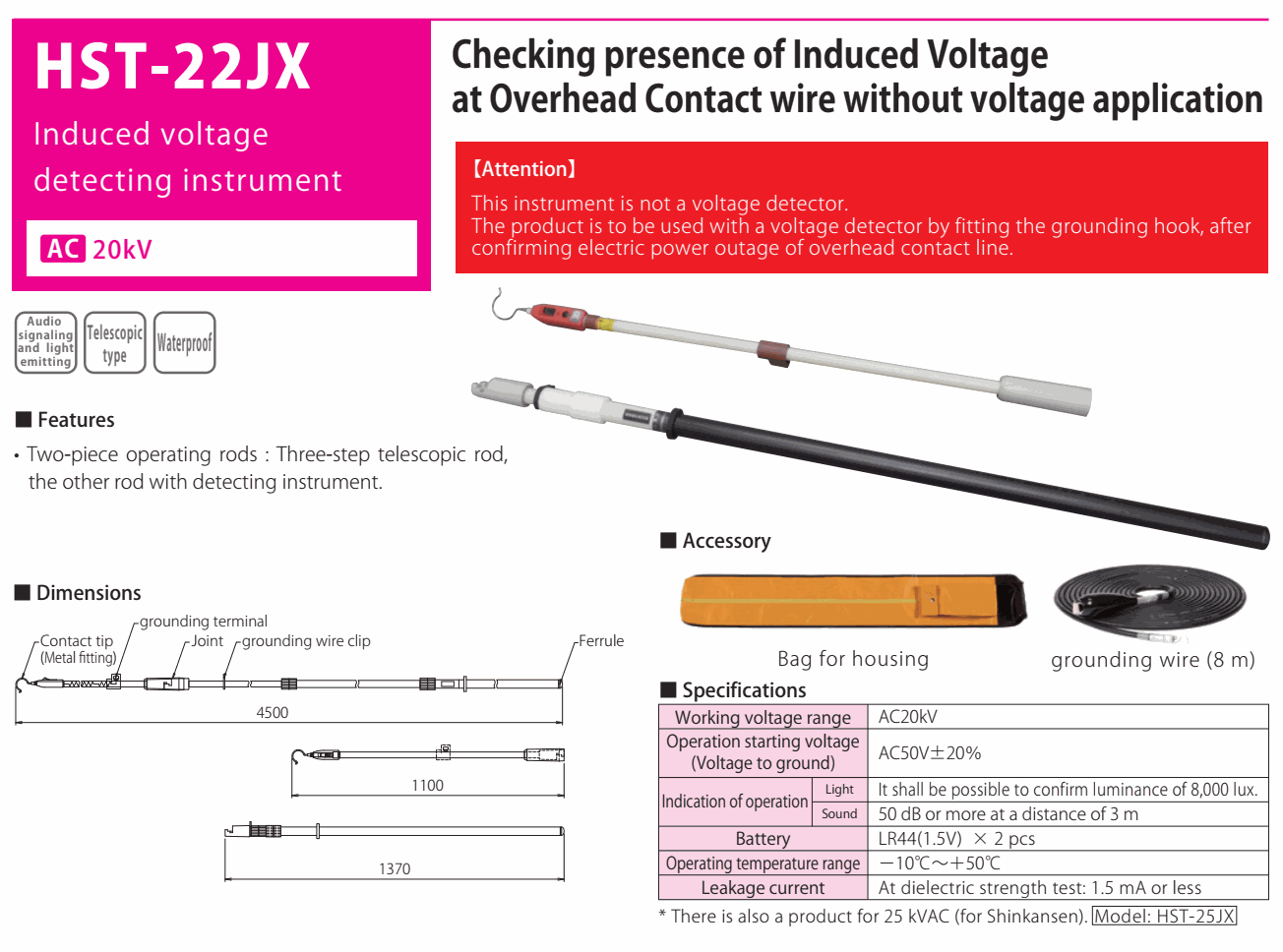

■ Specifications
Working voltage range: AC20kV
Operation starting voltage (Voltage to ground): AC50V±20％
Indication of operation:
- Light: It can be confirmed in the luminance of 8,000 lux
- Sound: 50 dB or more at a distance of 3m
Battery: LR44(1.5V) × 2 pcs
Operating temperature range: 10℃～＋50℃
Leakage current: At dielectric strength test: 1.5 mA or less
■ Accessory: Bag for housing, grounding wire (8m)
