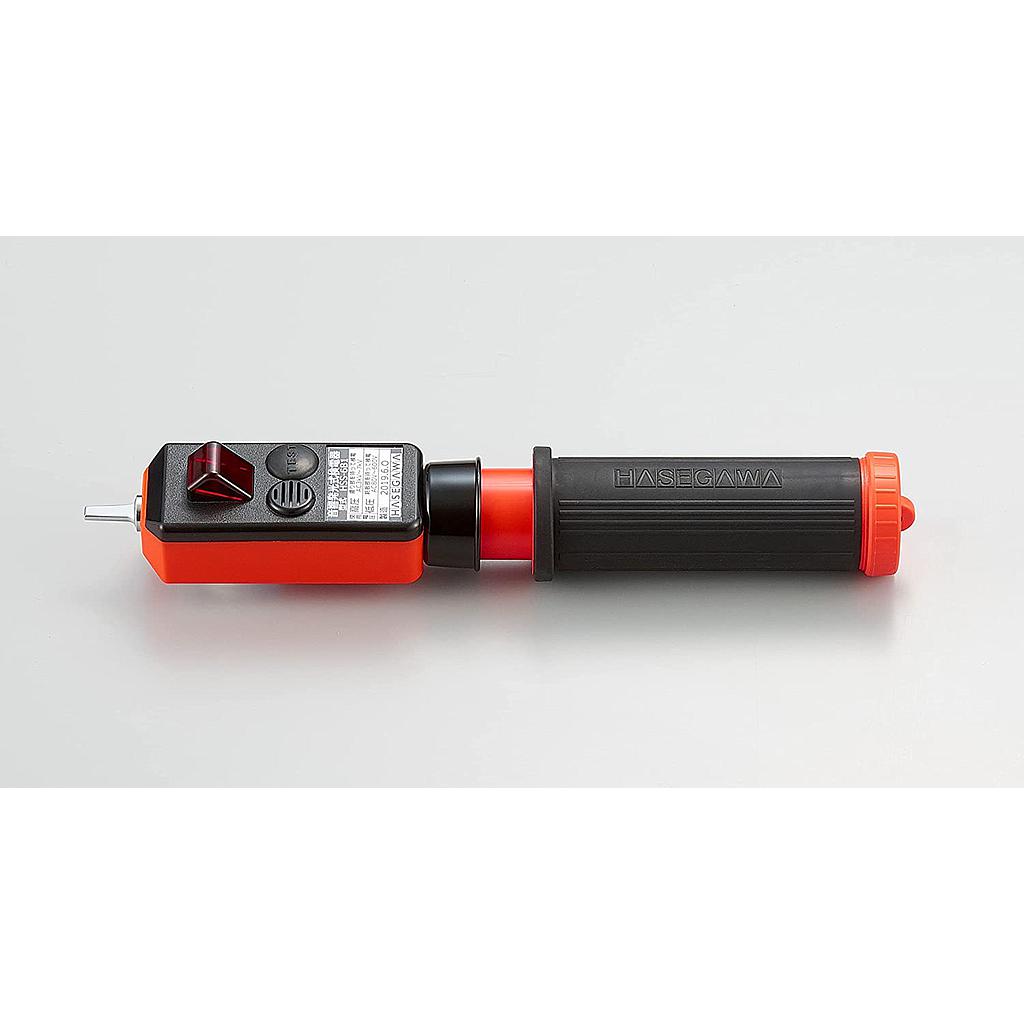

HASEGAWA HSS-6B1 Voltage Detector For Medium/Low Voltage (AC 80V~~7KV)

Working Voltage Range

+ High Voltage (AC 3kV～7kV): Hold the grip to detect.

+ Low Voltage (AC 80V～600V): Hold the nameplate portion to detect.

Rated Operating Voltage (Minimum response voltage to ground) :

+ For high voltage (Detect holding the grip)

Bare wire : AC 300V / OC wire (φ5 mm) : AC 1500V

+ For low voltage (Detect holding nameplate portion)

Bare wire : AC 80V

Rated Non-operating Distance : Distance at which operation starts when contact tip is brought near 150mm2 OC wire with grip portion held by hand

+ 4,000V (voltage to ground of 6.6kV circuit): 5cm

+ 2,000V (voltage to ground of 3.3kV circuit): 3cm

Weight About 140g

Frequency 50Hz/60Hz

Dielectric Strength Between contact tip and grip : AC 20kV for 1 min.(extended)

Between contact tip and nameplate portion : AC 4kV for 1 min.

Insulation Resistance The same spot as the dielectric strength test:100MΩ or more

Leakage Current During the dielectric strength test:100μA or less

Construction Waterproof at the detecting head (not at the Insulation Rod)

Display Light:Flashing red light, distinguishable in brightness of 8,000 luxes

Sound:Intermittent sound, 50dB min. 2m away

Battery 2 Alkaline button-cells LR44 (1.5 V)

Operating Temperature -10℃ ～ +40℃
