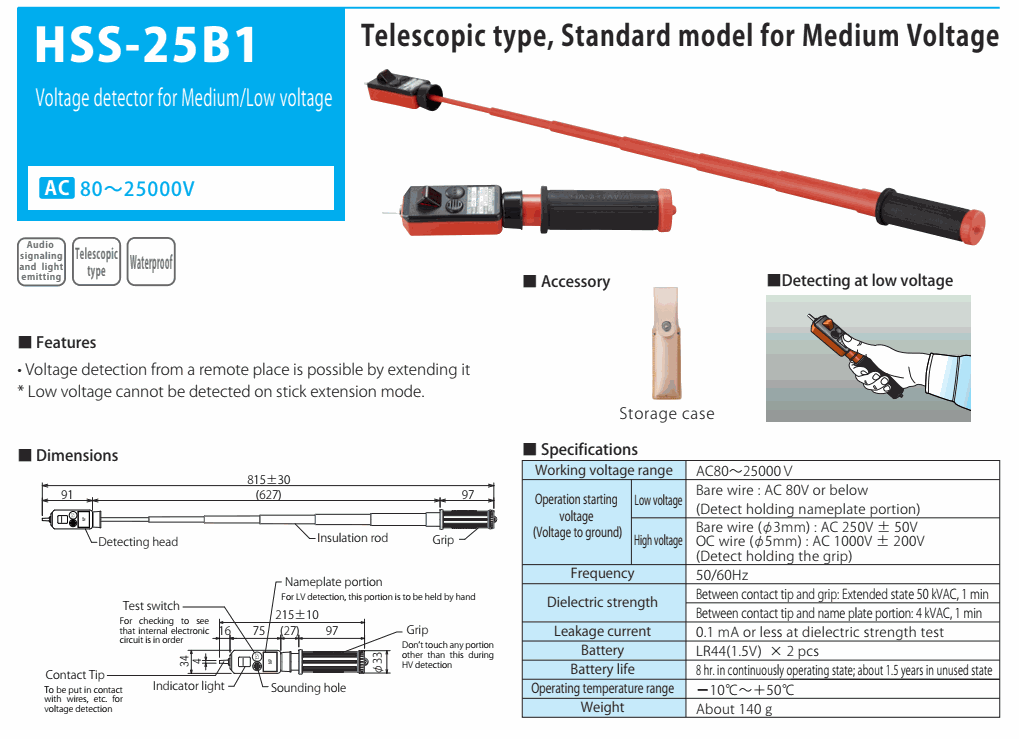

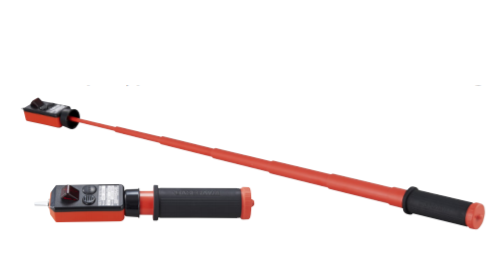

HASEGAWA HSS-25B1 Voltage Detector For Medium/Low Voltage (AC 80V~~25KV)

■ Specifications

Working voltage range: AC80～25000V

Operation starting voltage (Voltage to ground):

Low voltage: Bare wire: AC 80V or below (Detect holding nameplate portion)

High voltage:

• Bare wire (φ3mm): AC 250V ± 50V

• OC wire (φ5mm): AC 1000V ± 200V

(Detect holding the grip)

Frequency: 50/60Hz

Dielectric strength:

•Between contact tip and grip: Extended state 50 kVAC, 1 min

•Between contact tip and name plate portion: 4 kVAC, 1 min

Leakage current: 0.1 mA or less at dielectric strength test

Battery: LR44(1.5V) × 2 pcs

Battery life: 8 hr. in continuously operating state; about 1.5 years in unused state

Operating temperature range: －10℃～＋50℃

Weight: About 140 g

* Low voltage cannot be detected on stick extension mode.

■ Features:

• Voltage detection from a remote place is possible by extending it
