HASEGAWA HSN-6N Voltage Detector for Medium/Low Voltage (AC60V～7000V)
ManufacturerHASEGAWA(View more products from this manufacturer)
ModelHSN-6N
OriginJapan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

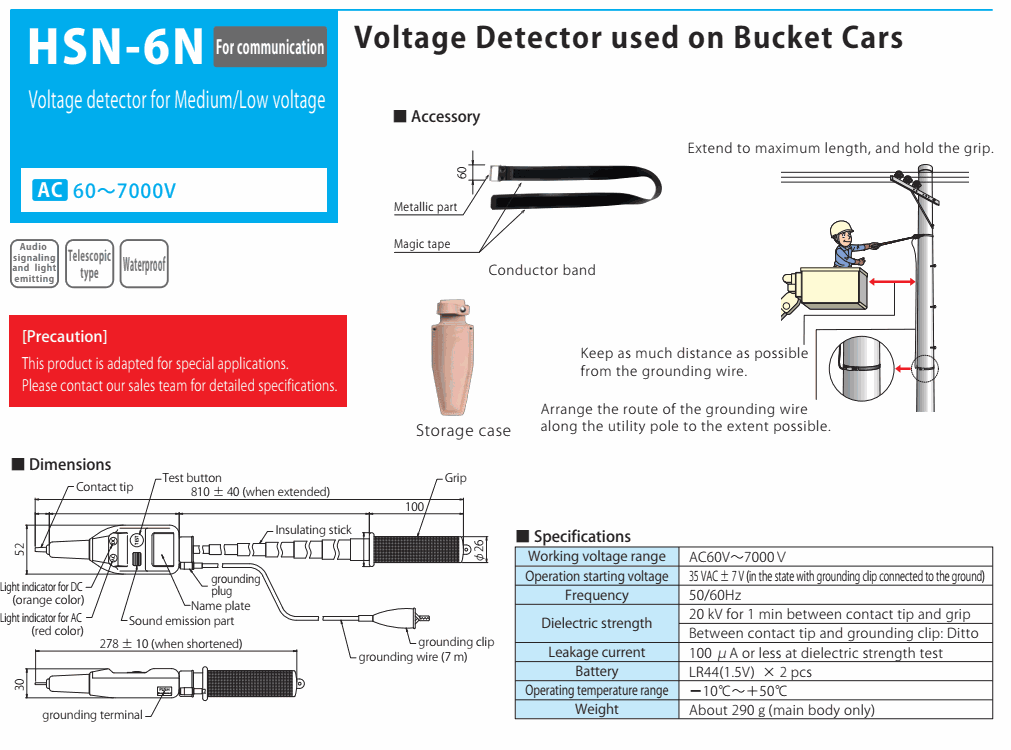

■ Specifications
Working voltage range: AC60V～7000V
Operation starting voltage: 35 VAC ± 7 V (in the state with grounding clip connected to the ground)
Frequency: 50/60Hz
Dielectric strength:
•20 kV for 1 min between contact tip and grip
•Between contact tip and grounding clip: Ditto
Leakage current: 100 μA or less at dielectric strength test
Battery: LR44(1.5V) × 2 pcs
Operating temperature range: －10℃～＋50℃
Weight: About 290 g (main body only)
■ Accessory: Conductor band, Storage case
