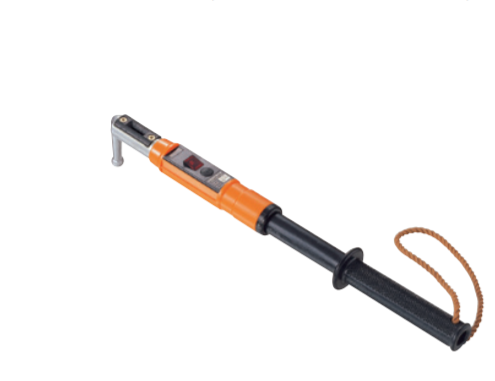

HASEGAWA HSH-K6 Discone Hook Stick with Voltage Detector (AC 6.6kV)

■ Specifications:

Working voltage range: AC 6.6kV

Operation starting voltage (Voltage to ground): 1300V±20％ （continuous indications of sound & light） （with insulated wire）

Insulation resistance: Between contact tip (metal fitting) and grip, 100 MΩ or more

Dielectric strength: Between contact tip (metal fitting) and grip 1 min

Leakage current: At dielectric strength test: 1mA or less

Indication of operation:

- Light: It shall be possible to confirm luminance of 8,000 lux

- Sound: 50 dB or more at a distance of 2 m

Operating temperature range: －10℃～＋40℃

Tensile performance: 200kg, 1 min

Battery: 6R61 or 6F22(9V) × 1 pcs

Structure: Waterproof (Ingress of water is prevented.)

Dimension: About 470mm

Weight: About 390g

＊Without the casing
