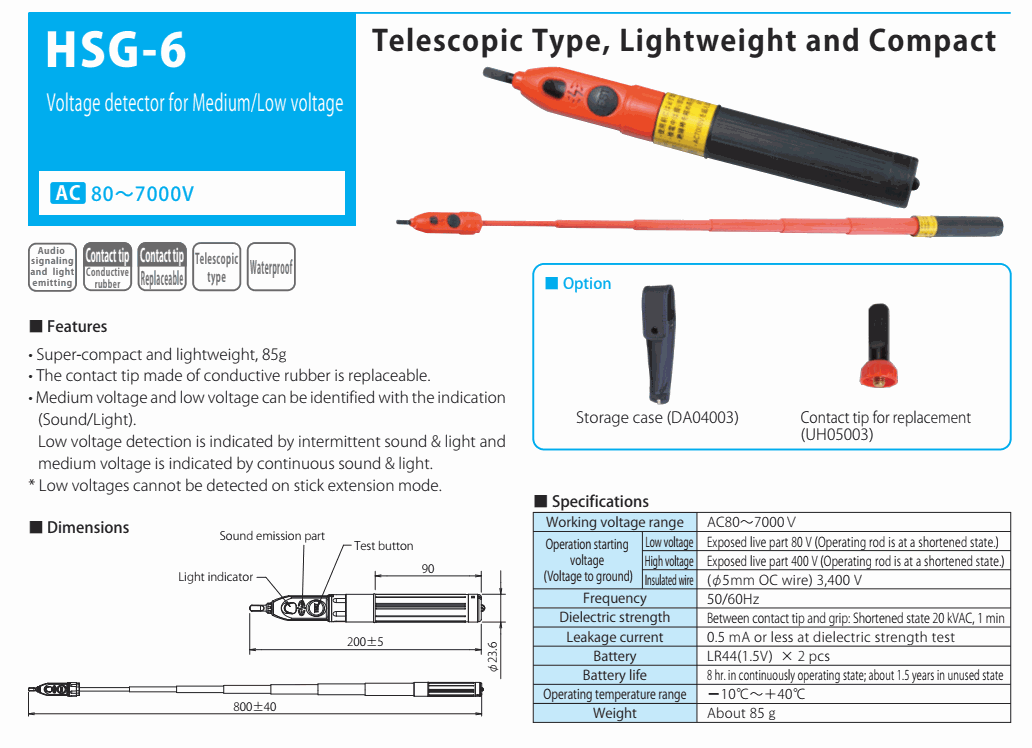

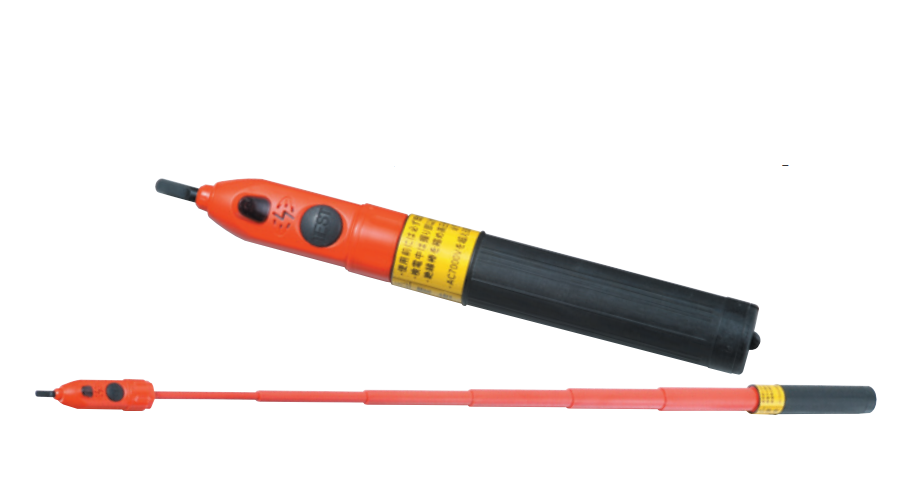

HASEGAWA HSG-6 Voltage Detector For Medium/Low Voltage (AC80～7000V)

■ Specifications:

Working voltage range: AC80～7000V

Operation starting voltage (Voltage to ground):

Low voltage: Exposed live part 80 V (Operating rod is at a shortened state.)

High voltage: Exposed live part 400 V (Operating rod is at a shortened state.)

Insulated wire: (φ5mm OC wire) 3,400 V

Frequency: 50/60Hz

Dielectric strength: Between contact tip and grip: Shortened state 20 kVAC, 1 min

Leakage current: 0.5 mA or less at dielectric strength test

Battery: LR44(1.5V) × 2 pcs

Battery life: 8 hr. in continuously operating state; about 1.5 years in unused state

Operating temperature range: －10℃～＋40℃

Weight: About 85 g

■ Option: Storage case (DA04003), Contact tip for replacement (UH05003)

■ Features

• Super-compact and lightweight, 85g

• The contact tip made of conductive rubber is replaceable.

• Medium voltage and low voltage can be identified with the indication (Sound/Light).

Low voltage detection is indicated by intermittent sound & light and medium voltage is indicated by continuous sound & light.
