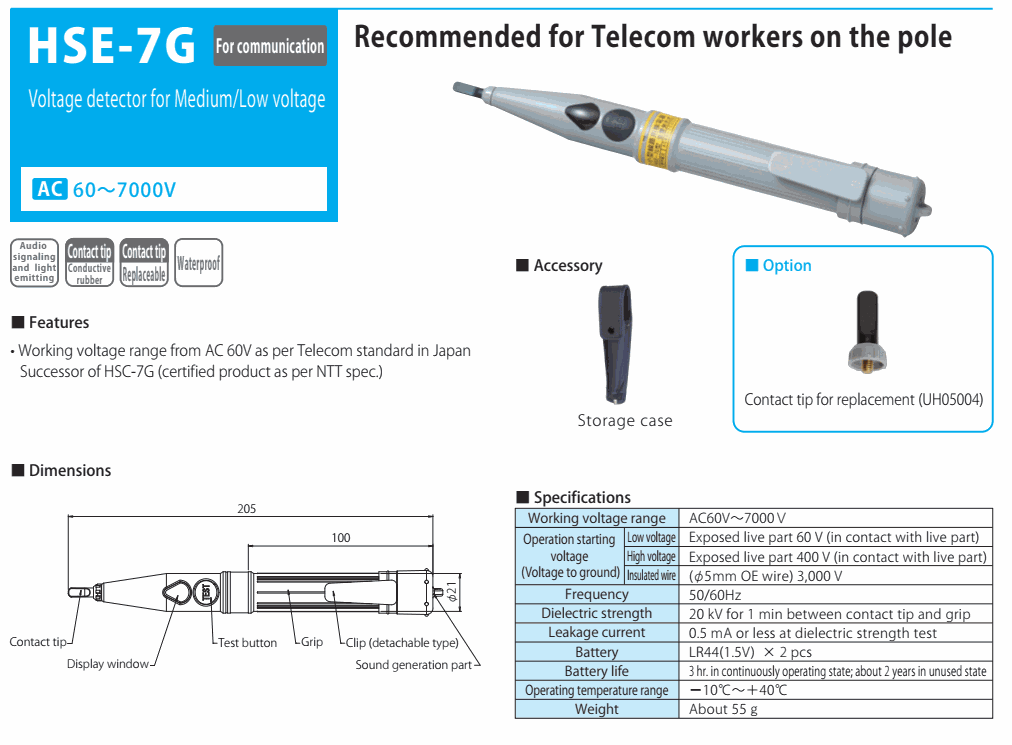

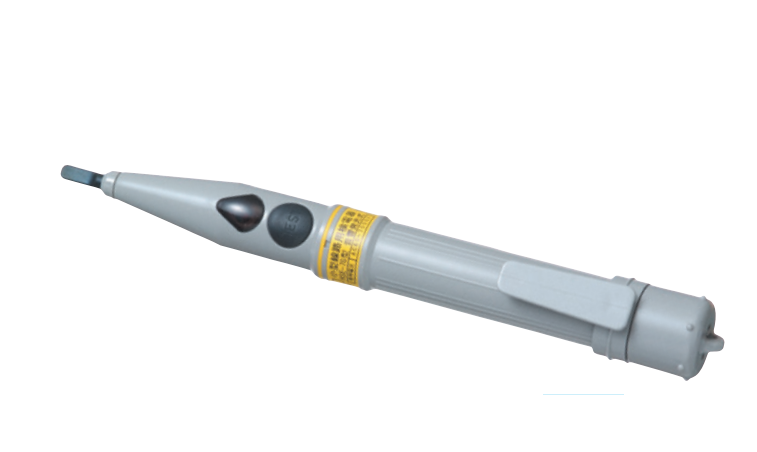

HASEGAWA HSE-7G Voltage Detector For Medium/Low Voltage (AC60～7000V)

■ Specifications:

Working voltage range: AC60～7000V

Operation starting voltage (Voltage to ground):

Low voltage: Exposed live part 60 V (in contact with live part)

High voltage: Exposed live part 400 V (in contact with live part)

Insulated wire: (φ5mm OC wire) 3,000 V

Frequency: 50/60Hz

Dielectric strength: 20 kV for 1 min between contact tip and grip

Leakage current: 0.5 mA or less at dielectric strength test

Battery: LR44(1.5V) × 2 pcs

Battery life: 3 hr. in continuously operating state; about 2 years in unused state

Operating temperature range: －10℃～＋40℃

Weight: About 55 g

■ Accessory: Storage case

■ Option: Contact tip for replacement (UH05004)

■ Features

• Working voltage range from AC 60V as per Telecom standard in Japan

Successor of HSC-7G (certified product as per NTT spec.)
