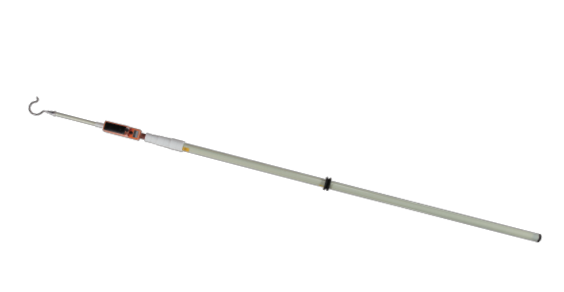

HASEGAWA HS-500 Extra High Voltage Detector (AC250kV～550kV)
ManufacturerHASEGAWA(View more products from this manufacturer)
ModelHS-500
OriginJapan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
■ Specifications
Working voltage range: AC250kV～550kV
Operation starting voltage (Voltage to ground): 20 kVAC ± 20% (in contact with exposed live part)
Dielectric strength: Insulation pole 75 kVAC/300 mm, 5 min
Leakage current: 100 μA or less at dielectric strength test/1 position
Battery: 6R61 or 6F22(9V) × 1 pcs
Operating temperature range: －10℃～＋50℃
Weight: About 4.7kg
■ Accessory: Bag for housing
Datasheet
