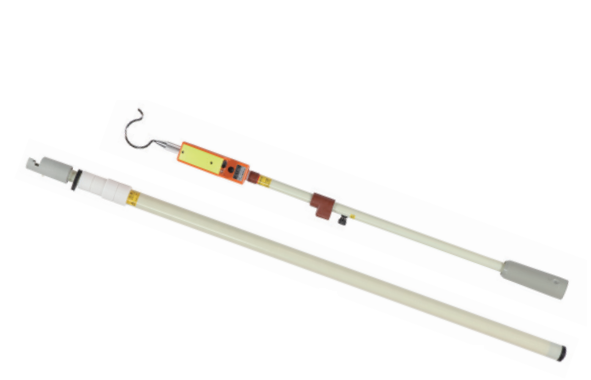

HASEGAWA HS-1.5NJ Medium Voltage Detector (AC 6600V; DC 600～7000V)

■ Specifications

Working voltage range:

- AC: 6600V

- DC: 600～7000V

Operation starting voltage (Voltage to ground):

- AC: 2000V±20％

- DC: 400V±20％

Frequency (AC): 50/60Hz

Grounding system: Clip

Indication of operation:

- Light: It can be confirmed in the luminance of 8,000 lux

- Sound: Intermittent sound

Battery: 6R61 or 6F22(9V) × 1 pcs

Weight: About 3,140g

Dielectric strength: Between contact tip (metal fitting) and grounding terminal: 14,000 VAC, 5 min

Leakage current: Leakage current at dielectric strength test: 1 mA or less

■ Accessory: Common bag, Clip-type grounding wire (7m)

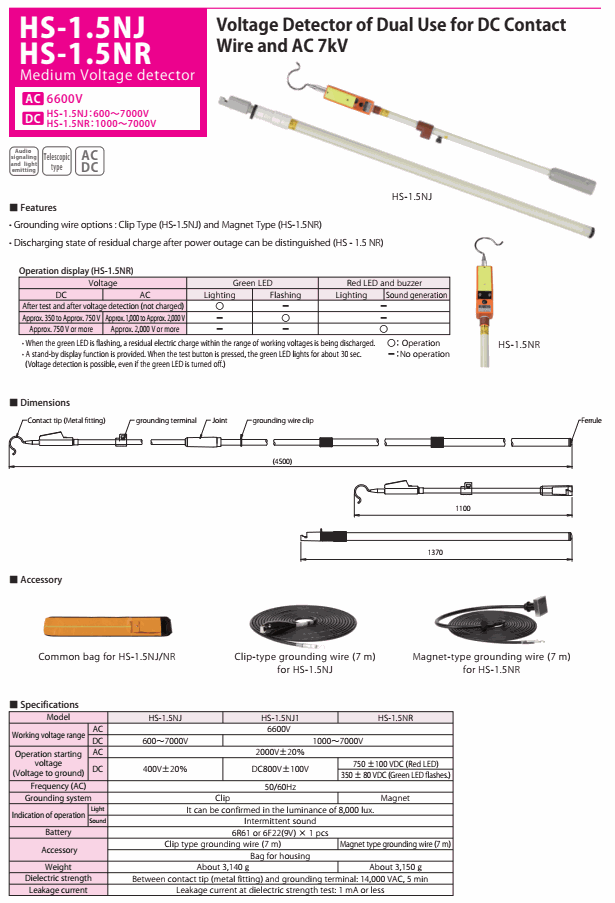

Datasheet
