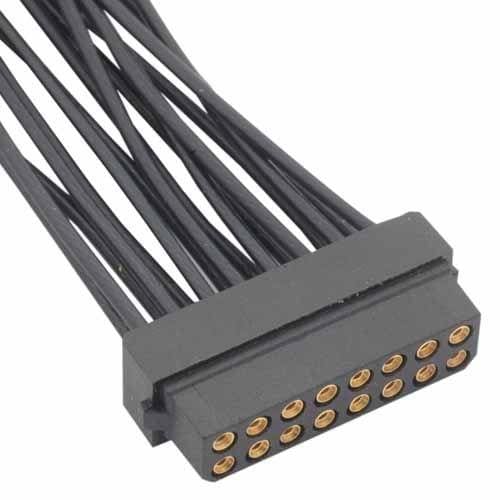

Harwin M80-7881201 Headers LTEK DIL SOCKET ASSY 30 AWG
ManufacturerHarwin(View more products from this manufacturer)
ModelM80-7881201
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2 mm
Row Spacing: 2 mm
Unit Weight: 1.413 g
REACH - SVHC: Details
Housing Color: Black
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Housing Material: Polyamide (PA)
Termination Style: Crimp
Number of Positions: 12 Position
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
