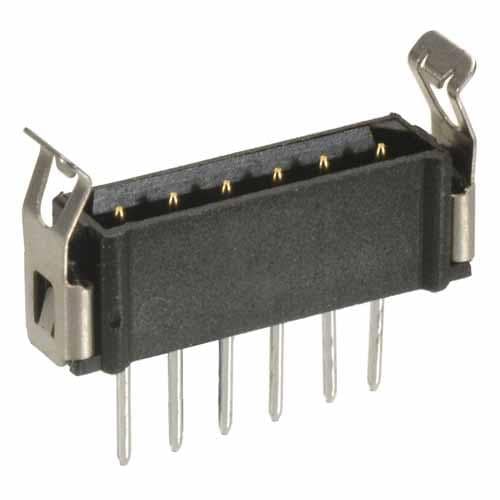

Harwin M80-7820742 Shrouded 7 SIL MALE VERT LATCH 4.5MM TAIL
ManufacturerHarwin(View more products from this manufacturer)
ModelM80-7820742
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2 mm (0.079 in)
Unit Weight: 518 mg
Housing Color: Black
Latching Type: Locking Latch
Contact Gender: Pin (Male)
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 1 Row
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Polyamide (PA)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 7 Position
Insulation Resistance: 100 MOhms
Termination Post Length: 4.5 mm (0.177 in)
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
