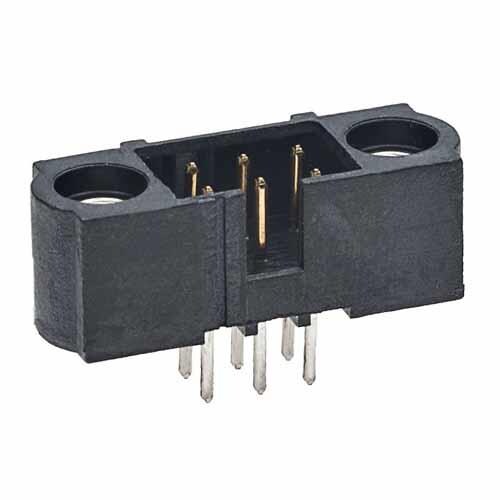

Harwin M80-5000642 Shrouded 3+3 POS VERT MALE 3mm TAIL W/JS TIN

Pitch: 2 mm (0.079 in)

Row Spacing: 2 mm (0.079 in)

Unit Weight: 861 mg

Housing Color: Black

Latching Type: Jackscrew

Contact Gender: Pin (Male)

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Phosphor Bronze

Housing Material: Polyphenylene Sulfide (PPS)

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position

Insulation Resistance: 100 MOhms

Termination Post Length: 3.25 mm (0.128 in)

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
