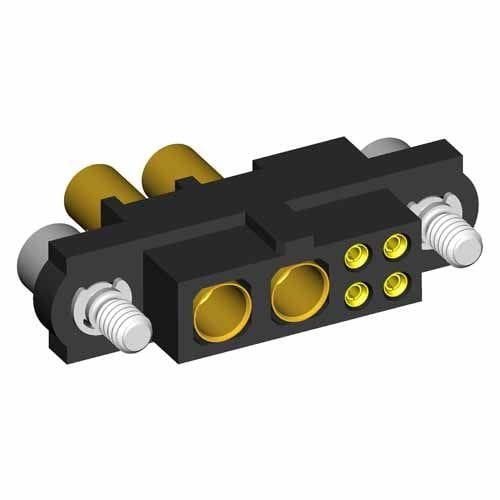

Harwin M80-4D10405F2-02-327-00-000 Receptacles 4+2 Pos. Female 22AWG+16AWG Cable Conn. Kit, Jackscrews

Pitch: 2 mm, 4 mm

Thread Size: M2

Housing Color: Black

Contact Gender: Female

Current Rating: 3 A, 10 A

Mounting Angle: Straight

Mounting Style: Free Hanging

Voltage Rating: 120 VAC, 120 VDC

Wire Gauge Max: 16 AWG

Wire Gauge Min: 22 AWG

Contact Plating: Gold

Contact Material: Brass, Beryllium Copper

Housing Material: Polyphenylene Sulfide (PPS)

Termination Style: Crimp, Solder

Flammability Rating: UL 94 V-0

Housing / Hood Size: 22 mm x 5.55 mm x 13 mm

Number of Positions: 6 Position

Number of Power Positions: 2 Position

Number of Signal Positions: 4 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
