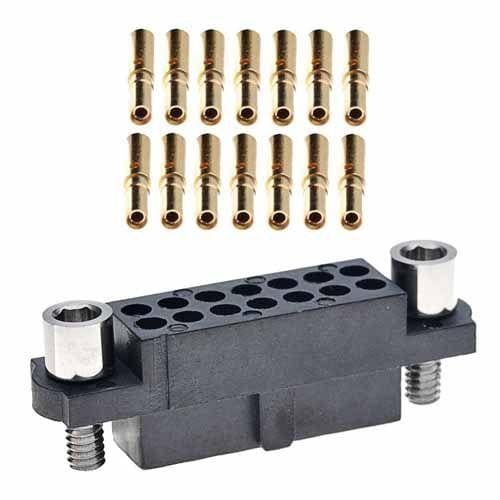

Harwin M80-4801642 Wire Housings J-TEK DIL DATAMATE FEMALE CRIMP CONN
ManufacturerHarwin(View more products from this manufacturer)
ModelM80-4801642
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2 mm
Row Spacing: 2 mm
Unit Weight: 2.344 g
REACH - SVHC: Details
Housing Color: Black
Contact Gender: Socket (Female)
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 300 V
Contact Plating: Gold
Contact Material: Beryllium Copper
Housing Material: Polyphenylene Sulfide (PPS)
Termination Style: Crimp
Number of Positions: 16 Position
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
