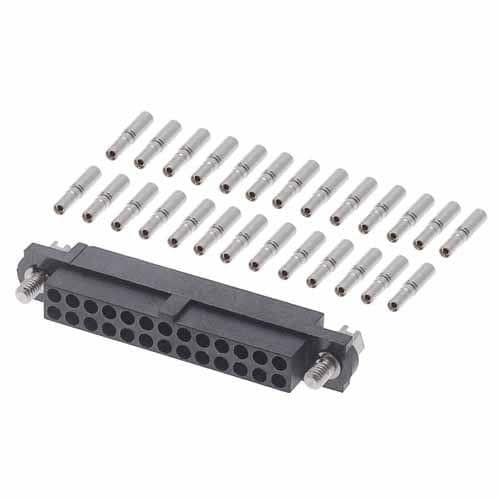

Harwin M80-4612642 Receptacle Housing 13+13 POS FEM +J/S SM BORE TIN

Pitch: 2 mm (0.079 in)

Wire Gauge: 28 AWG to 24 AWG

Row Spacing: 2 mm (0.079 in)

Unit Weight: 3.346 g

Contact Type: Socket

REACH - SVHC: Details

Housing Color: Black

Contact Gender: Socket (Female)

Current Rating: 3 A

Housing Gender: Plug

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Beryllium Copper

Housing Material: Polyphenylene Sulfide (PPS)

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 26 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
