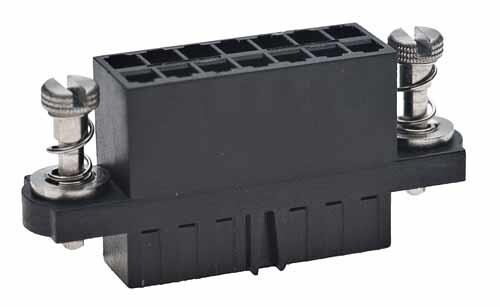

Harwin M80-4591498 Receptacle Housing 7+7 POS FEMALE CRIMP W/101 HARDWARE
ManufacturerHarwin(View more products from this manufacturer)
ModelM80-4591498
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2 mm (0.079 in)
Row Spacing: 2 mm (0.079 in)
Unit Weight: 1.343 g
Housing Color: Black
Contact Gender: Socket (Female)
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 120 V
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Polyamide (PA)
Termination Style: Crimp
Flammability Rating: UL 94 V-0
Number of Positions: 12 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
