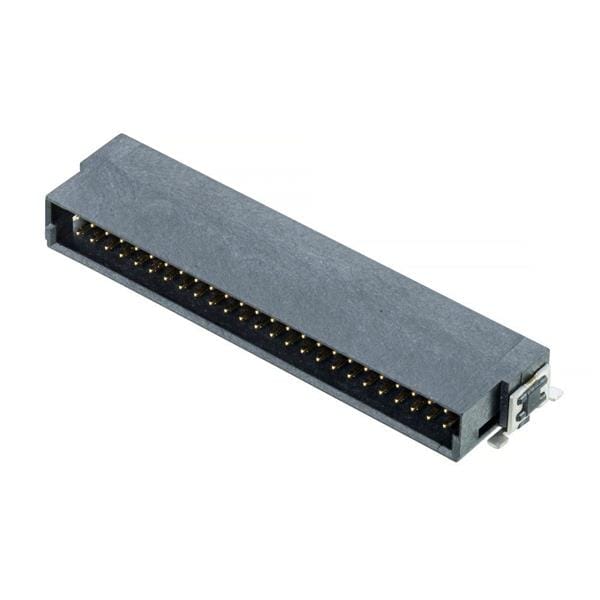

Harwin M55-7105042R Connectors 50P 1.27 SMC Male R/A SMT Type
ManufacturerHarwin(View more products from this manufacturer)
ModelM55-7105042R
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 1.27 mm (0.05 in)
Unit Weight: 1.632 g
Current Rating: 1.2 A
Mounting Angle: Horizontal
Mounting Style: Mounting Peg
Number of Rows: 2 Row
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 50 Position
Insulation Resistance: 10 GOhms
Termination Post Length: 4 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
