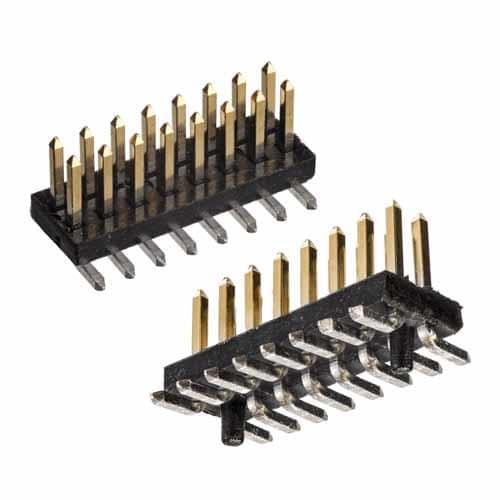

Harwin M50-3610842 Pin Strip 08+08 DIL SMT P/HDR W/PEGS

Pitch: 1.27 mm (0.05 in)

Application: Wire-to-Board

Row Spacing: 1.27 mm (0.05 in)

Unit Weight: 196 mg

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 1 A

Mounting Angle: Straight

Mounting Style: SMD/SMT

Number of Rows: 2 Row

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Brass

Housing Material: Thermoplastic

Termination Style: Solder

Mating Post Length: 3 mm (0.118 in)

Flammability Rating: UL 94 V-0

Number of Positions: 16 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
