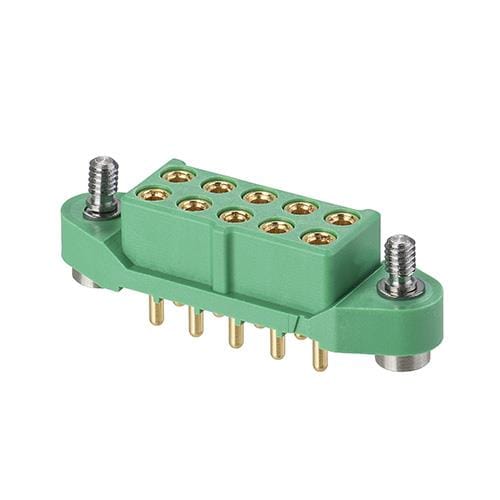

Harwin M300-FV31045F2 Connectors 5+5 Pos Female Vertical Conn
ManufacturerHarwin(View more products from this manufacturer)
ModelM300-FV31045F2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 3 mm
Unit Weight: 9.335 g
REACH - SVHC: Details
Contact Gender: Socket (Female)
Current Rating: 10 A
Mounting Angle: Vertical
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 600 V
Contact Plating: Gold
Contact Material: Beryllium Copper
Housing Material: Polyamide
Termination Style: Solder Pin
Number of Positions: 10 Position
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 65 C
