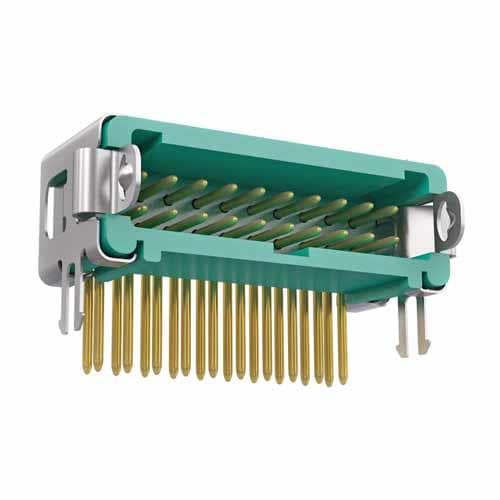

Harwin G125-MH12005L1R Shrouded MHRZ 3.0/1.6MM 2X10P

Pitch: 1.25 mm (0.049 in)

Application: Wire-to-Board

Row Spacing: 1.25 mm (0.049 in)

Unit Weight: 794 mg

Housing Color: Green

Latching Type: Latch Lock

Contact Gender: Pin (Male)

Current Rating: 2 A

Mounting Angle: Right Angle

Mounting Style: Board Lock

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Phosphor Bronze

Housing Material: Nylon

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 20 Position

Insulation Resistance: 1 GOhms

Termination Post Length: 3.3 mm (0.13 in)

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 65 C
