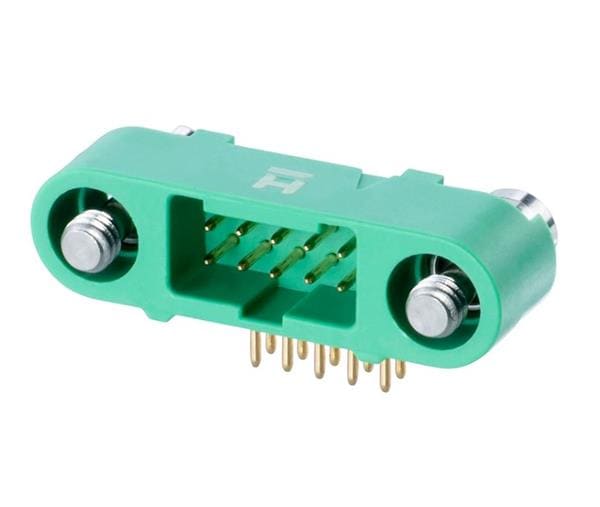

Harwin G125-MH11005M4P Shrouded G125-SL MALE HORIZ PCT W/ BMOUNT 10-WAY

Pitch: 1.25 mm (0.049 in)

Row Spacing: 1.25 mm (0.049 in)

Unit Weight: 1.344 g

Housing Color: Green

Latching Type: Jackscrew

Contact Gender: Pin (Male)

Current Rating: 2 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Phosphor Bronze

Housing Material: Polyamide (PA)

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 10 Position

Insulation Resistance: 1 GOhms

Termination Post Length: 3.3 mm (0.13 in)

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 65 C
