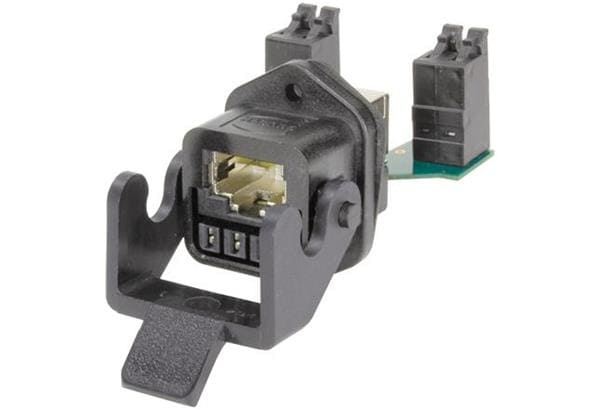

HARTING 09452251760 Industrial Han 3A RJ45Cat6 8+4p Hybrid/Blk Plstc Pnl

Color: Metal

Gender: Jack (Female)

IP Rating: IP67

Shielding: Shielded

USOC Codes: RJ45

Application: 10/100/1000G/2.5G Base-T

Unit Weight: 64.190 g

Configuration: 1x1

Mating Cycles: 500

Tab Direction: User Selectable

Mounting Angle: Straight

Mounting Style: Flange Mount

Number of Ports: 1 Port

Locking Mechanism: Latch-Lock

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 6

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
