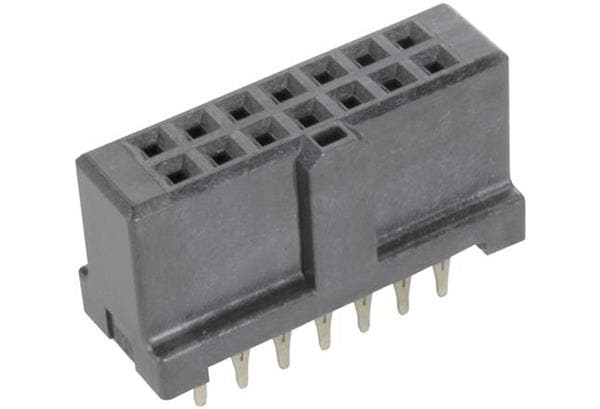

HARTING 09195146829 Receptacles SEK/IDC Low Profile straight female, 4.5mm press-in tails, 14pin, PL2
ManufacturerHARTING(View more products from this manufacturer)
Model09195146829
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2.54 mm (0.1 in)
Current Rating: 1 A
Mounting Angle: Straight
Mounting Style: PCB Mount
Number of Rows: 2 Row
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Press Fit
Flammability Rating: UL 94 V-0
Number of Positions: 14 Position
Insulation Resistance: 1 GOhms
Termination Post Length: 4.5 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
