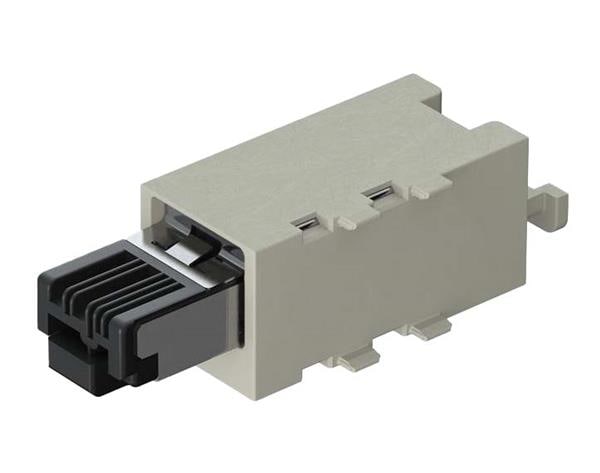

HARTING 09149452003 Han Domino RJ45 Cube Han Domino RJ45 cube, IDC cat5 M.2

Gender: Plug (Male)

Shielding: Shielded

Configuration: 1x1

Mating Cycles: 500 Cycle

Current Rating: 1 A

Mounting Angle: Right Angle

Mounting Style: Cable Mount

Voltage Rating: 50 V

Number of Ports: 1 Port

Termination Style: IDC

Mounting Direction: Horizontal

Number of Contacts: 4 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 4 Position

Performance Category: Cat 5

Operating Temperature Range: - 40 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 4 Position
