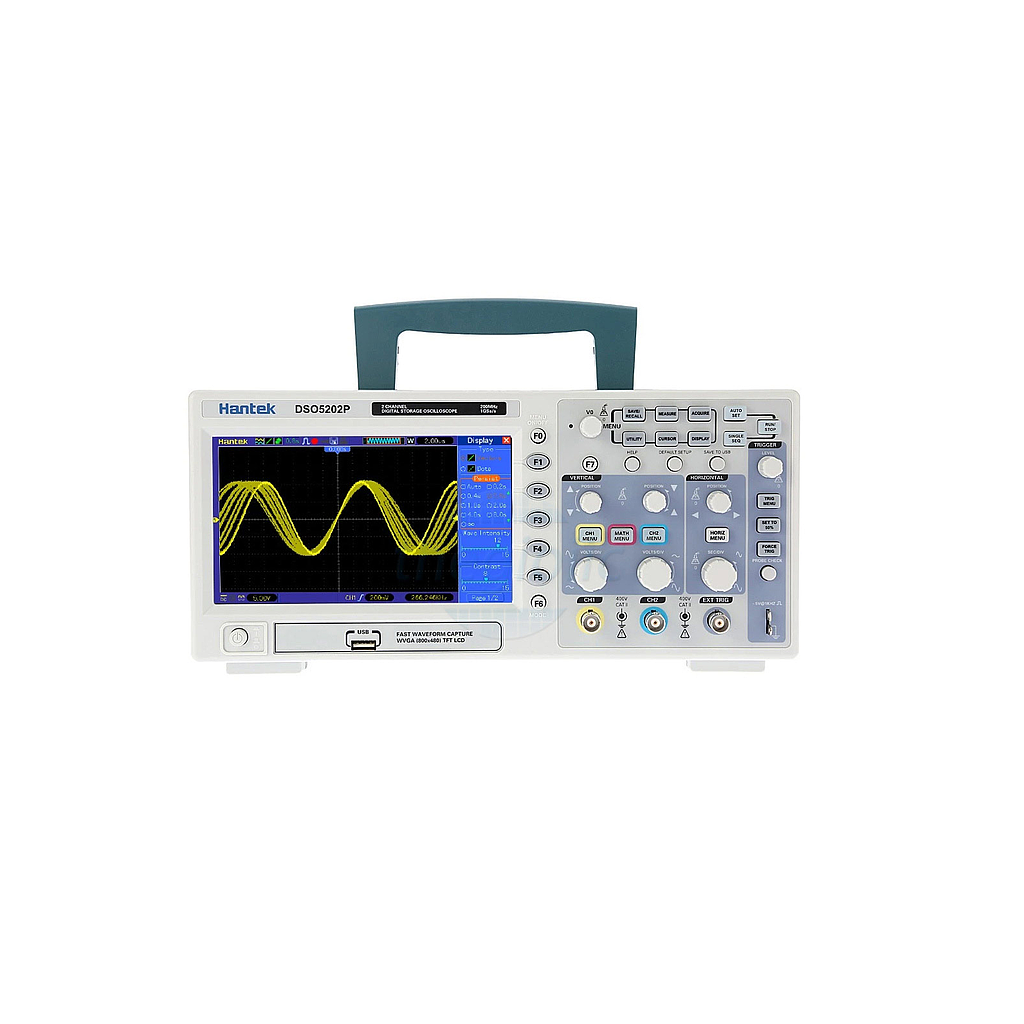

Hantek DSO5202P Oscilloscopes (200Mhz,1GSa/s, 2 CH)

Bandwidth: 200MHz

Number of channels: 2

Real-time sampling rate: 1GSa/s

Equivalent sampling rate: 25GSa/s

Memory depth: 40K

Rise time: 1.7ns

Time base accuracy: 50ppm

Time range: 2ns/div-5V/div

Input impedance: 1MΩ

VOLTS/DIV range: 2mV/div-5V/div

A/D converter: 8-bit

Position range:

50V (5V/div)

40V (2V/div-500mV/div)

2V (200mV/div-50mV/div)

400mV (20mV/div-2mV/div)

Achievable accuracy (DC):

3% from 5V/div to 10mV/div

4% from 5mV/div to 2mV/div

Bandwidth limit: 20MHz

Trigger types: Edge, pulse, video, slope, overtime, alternate

Trigger sources: CH1, CH2, EXT, EXT/5, AC Line

Math functions: +, -, ×, ÷, FFT

Cursor measurements:

Voltage difference between cursors: V

Time difference between cursors: T

Symmetry of T in Hertz (1/T)

Automatic measurements: Frequency, Period, Mean, Peak-Peak, Cycle RMS, Minimum, Maximum, Rise time, Fall time, Negative pulse width, Positive pulse width, Delay 1-2 Rise, Delay 1-2 Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Period Mean, Period RMS, FOVShoot, RPREShoot, BWIDTH, FRF

Display: 7" TFT 16K Color LCD, 800x480 dots

Dimensions: 313 x 108 x 142mm

Weight: 3.0KG

Standard probes: PP200 x 2
