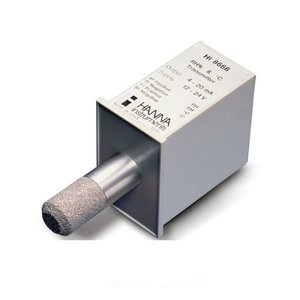

Hanna HI8666 Relative Humidity and Temperature Transmitter (0% - 100%, -20°C - 60°C)

Range
- RH: 0% (4 mA) to 100% (20 mA)
- Temperature: -20°C (4 mA) to 60°C (20 mA)
Accuracy
- RH: ±2% (5% to 95% RH)
- Temperature: ±1% F.S.
Response Time: six seconds without sintered cap; sixty seconds with sintered cap
Power Supply: 10-30 Vdc
Environment: 0 to 60°C (32 to 140°F)
Panel Cutout: 73 x 42 mm (2.9 x 1.6)
Dimensions: 79 x 49 x 150 mm (3.1 x 1.9 x 5.9)
Weight: 150 g (5.3 oz.)
Order Information: HI 8666 is supplied with built-in RH sensor, protective sintered cap for RH sensor, mounting brackets and instructions.
