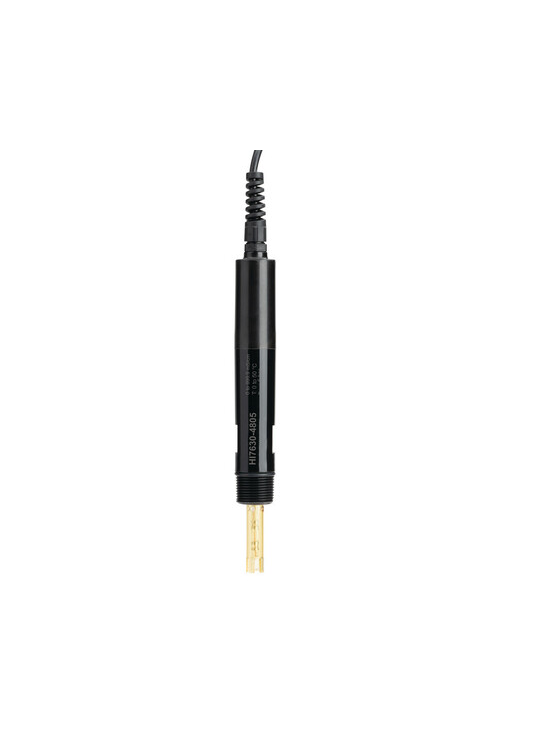

HANNA HI7630‑4810 4-Ring Conductivity Probe (0.0 µS/cm~999.9 mS/cm, 0.0 mg/L~400.0 g/L, 10m)

Range

EC: 0.0 µS/cm to 999.9 mS/cm*

TDS: 0.0 mg/L to 400.0 g/L (TDS factor 0.5)*

RES: 1.00 Ω•cm to9.99 MΩ•cm*

Seawater Salinity: 400.0 %NaCl, 42 psu, 80 ppt

Resolution**:

EC: 0.1 µS/cm; 0.001, 0.01, 0.1 mS/cm

RES: 0.1,1 Ω•cm;0.01,0.1,1 kΩ•cm,0.01MΩ•cm

Accuracy:

EC ± 2 % of reading or ±1 µS/cm, whichever is greater

TDS ± 2 % of reading or ±0.5 mg/L, whichever is greater

Calibration

Standard: Automatic, two-point with standard solution

Salinity: Single point with standard solution

Resistivity: Single point

Process: Single point

Temperature

Range: 0.0 to 100.0 °C (32.0 to 212.0 °F)

Accuracy: ± 0.5 °C; ± 1.0 °F

Calibration: Single point offset (controller setting)

Temperature compensation mode: Linear, Natural, Standard, None

Temperature source:

Automatic (from probe)

Manual

Body: PVDF

Sensor

Type: Four-ring, platinum

Insulator: Glass

Diameter: 12 mm (0.5”)

Insertion length: 50 mm (2”)

Maximum pressure: 6 bar (87 psi)

Threaded connection: 3/4” NPT external thread for mounting

Protection rating: IP68

Cable length: 10m

* Absolute values (not temperature compensated)

**Automatic ranging
