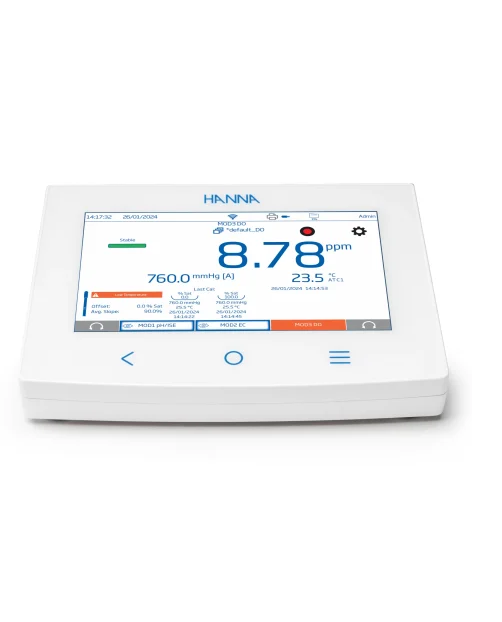

HANNA HI6000-02 Modular Multiparameter Benchtop Meter (Meter only)

pH MEASUREMENT

pH Range:

-2.0 to 20.0 pH

-2.00 to 20.00 pH

-2.000 to 20.000 pH

pH Resolution:

0.1 pH

0.01 pH

0.001 pH

pH Accuracy:

±0.1 pH

±0.01 pH

±0.002 pH (±1 LSD)

ORP MEASUREMENT

ORP Range: ±2000 mV

ORP Resolution:

1 mV

0.1 mV

ORP Accuracy: ±0.2 mV ±1 LSD

Relative mV Offset: ±2000 mV

TEMPERATURE MEASUREMENT

Temperature Range:

-20.0 to 120.0 °C

-4.0 to 248.0 °F

253.0 to 393.0 K

Temperature Resolution: 0.1 °C / 0.1 °F / 0.1 K

Temperature Accuracy: ±0.2 °C / ±0.4 °F / ±0.2 K

ISE MEASUREMENT

Range: 1 × 10⁻⁶ to 9.99 × 10¹⁰ concentration

Resolution: 1; 0.1; 0.01; 0.001

Accuracy: ±0.5% (monovalent); ±1% (divalent)

Calibration: Automatic, up to 5-point calibration with 7 standard buffers and 5 custom standards

CONDUCTIVITY (EC) MEASUREMENT

EC Range:

0.000 to 9.999 µS/cm

10.00 to 99.99 µS/cm

100.0 to 999.9 µS/cm

1.000 to 9.999 mS/cm

10.00 to 99.99 mS/cm

100.0 to 1000.0 mS/cm

EC Resolution:

0.001 µS/cm; 0.01 µS/cm; 0.1 µS/cm;

0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm

EC Accuracy: ±1% of reading (±0.01 µS/cm)

EC Calibration

Mode: Automatic standard recognition / User-defined standard

1-point or multi-point calibration

Calibration points:

84.00 µS/cm, 1.413 mS/cm, 5.000 mS/cm,

12.88 mS/cm, 80.00 mS/cm, 111.8 mS/cm

Calibration reminder:

Off; Daily (0 min to 23 h 59 min);

Time-based (1 min to 500 days 23 h 59 min)

TOTAL DISSOLVED SOLIDS (TDS)

TDS Range:

0.000 to 9.999 ppm (mg/L)

10.00 to 99.99 ppm (mg/L)

100.0 to 999.9 ppm (mg/L)

1.000 to 9.999 ppt (g/L)

10.00 to 99.99 ppt (g/L)

100.0 to 400.0 ppt (g/L)

Actual TDS with factor 1.00

TDS Resolution:

0.001 ppm; 0.01 ppm; 0.1 ppm; 1 ppm;

0.001 ppt; 0.01 ppt; 0.1 ppt

TDS Accuracy: ±1% of reading (±0.01 ppm)

TDS Calibration:

Based on conductivity calibration

RESISTIVITY MEASUREMENT

Resistivity Range:

1.0 to 99.9 Ω·cm

100 to 999 Ω·cm

1.00 to 9.99 kΩ·cm

10.0 to 99.9 kΩ·cm

100 to 999 kΩ·cm

1.00 to 9.99 MΩ·cm

10.0 to 100.0 MΩ·cm

Resistivity Resolution:

0.1 Ω·cm; 1 Ω·cm;

0.01 kΩ·cm; 0.1 kΩ·cm; 1 kΩ·cm;

0.01 MΩ·cm; 0.1 MΩ·cm

Resistivity Accuracy: ±1% of reading (±1 Ω·cm)

Resistivity Calibration:

Based on conductivity calibration

SALINITY – NaCl

Range:

0.00 to 42.00 PSU – Practical Scale

0.00 to 80.00 ppt (g/L) – Natural Sea Water

0.0 to 400.0% – Percent Scale

Resolution:

0.01 for Practical Scale / Natural Sea Water

0.1% for Percent Scale

Accuracy: ±1% of reading

Calibration:

0.00 to 42.00 PSU: Based on conductivity calibration

0.00 to 80.00 ppt (g/L): Based on conductivity calibration

0.0 to 400.0%: 1-point calibration at 100% using HI7037 solution (sold separately)

DISSOLVED OXYGEN (DO)

DO Range:

0.00 to 90.00 mg/L (ppm)

0.0 to 600.0% saturation

NOTE: Instrument range is limited by the probe range

DO Resolution: 0.01 mg/L (ppm); 0.1% saturation

DO Accuracy: Depends on probe used

(HI7641133 – Optical DO probe or HI764833 – Polarographic DO probe)

BAROMETRIC PRESSURE

Range:

450 to 850 mmHg

600 to 1133.2 mBar

60 to 113.32 kPa

17.72 to 33.46 inHg

8.702 to 16.436 psi

0.5921 to 1.1184 atm

Resolution:

0.1 mmHg; 0.1 mBar; 0.01 kPa;

0.001 inHg; 0.001 psi; 0.0001 atm

Accuracy:

±3 mmHg ±15% of reading at calibration point

±3 mmHg ±1 LSD

Pressure Compensation: Automatic or manual

OTHER SPECIFICATIONS

Results Mode:

Direct; Direct/Autohold and Module

Stability: Accurate, medium, fast

DATA LOGGING

Type: Automatic, manual, autohold

Records:

Up to 50,000 records per file

Minimum 1,000,000 data points per user

Auto logging intervals:

1, 2, 5, 10, 30 sec;

1, 2, 5, 10, 15, 30, 60, 120, 150, 180 min

File format: .csv

CONNECTIVITY

USB-A: 2 ports for keyboard and/or printer or USB drive

USB-C: 1 port for PC connection and USB-C drive

Wi-Fi & Ethernet: Record transfer and download (web server; email; FTP)

RS232: Peripheral connection

CALIBRATION REMINDER

Daily: 0 min to 23 h 59 min

Periodic: 1 min to 30 days, 23 h, 59 min

Off

Users: Up to 9 users and 1 default admin account

POWER

100–240 VAC to 24 VDC 2A adapter

ENVERONMENT

0 – 50 °C / 32 – 122 °F / 273 – 323 K

Maximum 95% RH non-condensing

DIMENSIONS

205 × 160 × 77 mm (8.0 × 6.2 × 3.0 in)

WEIGHT

Approximately 1.2 kg

SUPPLIED WITH

HI6000-02 meter

HI764060 electrode holder

24 VDC power adapter

USB cable

Quick start guide

Datasheet

Manual
