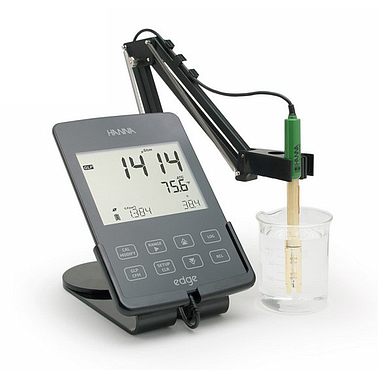

Hanna HI2030-02 Multiparameter EC/TDS/Salinity Meter (0.00 to 29.99 uS/cm)

- Range
+ EC 0.00 to 29.99 uS/cm; 30.0 to 299.9 uS/cm; 300 to 2999 uS/cm; 30.0 to 200.0 mS/cm; up to 500.0 mS/cm (absolute EC)
+ TDS 0.00 to 14.99 mg/L (ppm); 15.0 to 149.9 mg/L (ppm); 150 to 1499 mg/L (ppm); 1.50 to 14.99 g/L; 15.0 to 100.0 g/L; up to 400.0 g/L (absolute TDS)
+ Salinity 0.0 to 400.0 % NaCl; 0.01 to 42.00 PSU; 0.0 to 80.0 g/L
- Resolution
+ EC 0.01 uS/cm; 0.1 uS/cm; 1 uS/cm; 0.01 mS/cm; 0.1 mS/cm
+ TDS 0.01 ppm; 0.1 ppm; 1 PPM; 0.01 g/L; 0.1 g/L
+ Salinity 0.1 % NaCl; 0.01 PSU; 0.1 g/L
- Accuracy
+ EC ±1% of reading
+ TDS ±1% of reading
+ Salinity ±1% of reading
EC Calibration: 1 point offset calibration; 1 point slope calibration in EC standard 84 uS/cm, 1413 uS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 118.8 mS/cm
TDS Calibration: through EC calibration
Salinity Calibration: 1 point with HI-7037L 100% NaCl sea water standard
Temperature Compensation: noTC, ATC (-20.0 to 120.0 °C)
Electrode: HI 763100 Conductivity probe (included)
Environment: 0 to 50°C (32 to 122°F); RH max 95%
Dimensions: 202 x 140 x 12.7 mm
Weight: 250 g
Ordering Information: HI2030 EC kit includes: HI763100 Conductivity probe, 3 sachets of 1413 μS/cm conductivity standard, 3 sachets of 12880 μS/cm conductivity standard, USB cable, benchtop docking station with electrode holder, wall mount cradle, 5 VDC power adapter, instruction manual and Quality certificate.
