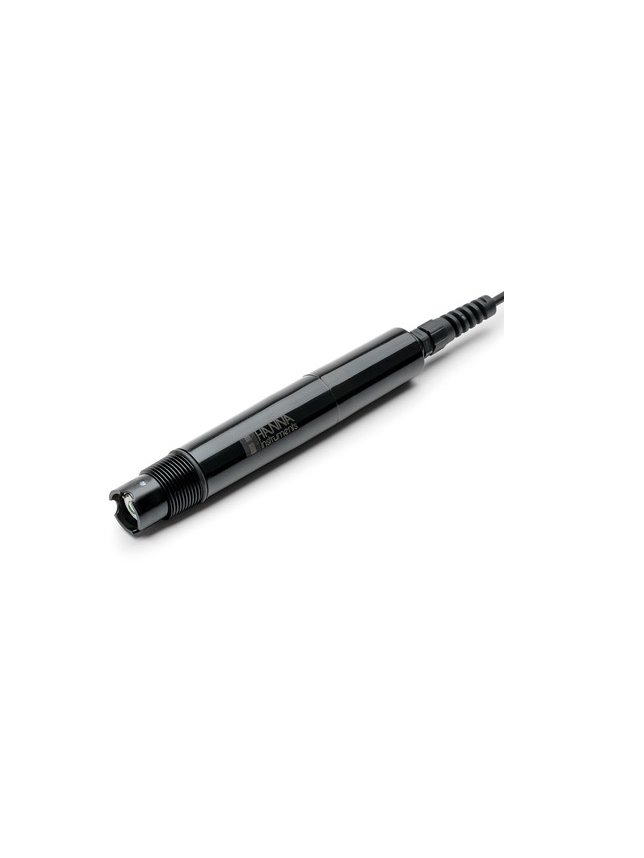

HANNA HI1006-3810 Process Digital pH Probe (0 ~ 14 pH)

Measurement Range:

LT glass: 0 to 12 pH

HT glass: 0 to 14 pH

HF glass: 0 to 10 pH

Reference Cell Type: double junction

Type of Electrolyte: polymer

Body Material: PVDF

Glass Type: based on configuration: LT (low temperature), HT (high temperature), or HF (hydrofluoric acid)

Tip / Shape: flat

Environment:

LT glass -5 to 80 ?C (23 to 156 ?F)

HT glass 0 to 100 ?C (32 to 212 ?F)

HF glass F- < 2g/L, temperature 2

Matching Pin: yes

Max. Pressure: 6 bar (87 psi)

Body Length/Overall Length: 140 mm

Temperature Sensor: pt100

Outer Diameter: 22.5 mm

Output Signal: digital RS485

Connector Type: direct wire connection

Probe Mounting: 3/4 in. NPT threaded connection for in-line mounting or submersion mounting with probe holder
