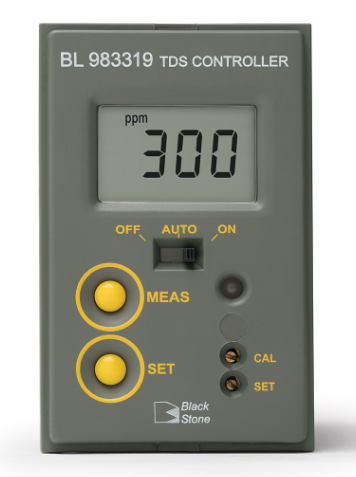

HANNA BL983319-2 TDS Controller (0 - 1999 mg/L) (Output analog 4-20mA)

TDS scale

0 to 1999 mg/L

Resolution

1mg/L

Error (@25°C)

±2% of full scale (about ±40mg/L)

Analog output 4-20 mA YES

TDS digital conversion

0.65

Standard activation

Manual, 1 point with CAL adjustment knob

Partition

Maximum 2A (protected bridge), 250 Vac, 30 VDC

Choose a way to

contact close when measuring point < setting

Install point

Customizable from 0 to 1999 mg/L

Too far

Customizable from 5 to nearly 30 minutes

Heat compensation

Automatic from 5 to 50°C (41 to 122°F) with β =2%/°C

Electricity supply

BL983319-0: 12 VDC adapter (included)

BL983319-1: 115/230VAC; 50/60Hz

Size

83x53x99mm

Mass

BL983319-0: 200 g

BL983319-1: 300 g

Provide cover

- Screen BL983319.

- Transparent plastic lid.

- Mounting frame.

- 12VDC Adapter (for BL983319-0).

- action tickets.

- User manual.

- Proof of quality.

- Paper protective box.

CONDUCTIVITY ELECTRODE HI7634-00 CABLE LENGTH 2M, 4M, 5M BUY SEPARATELY

Datasheet
