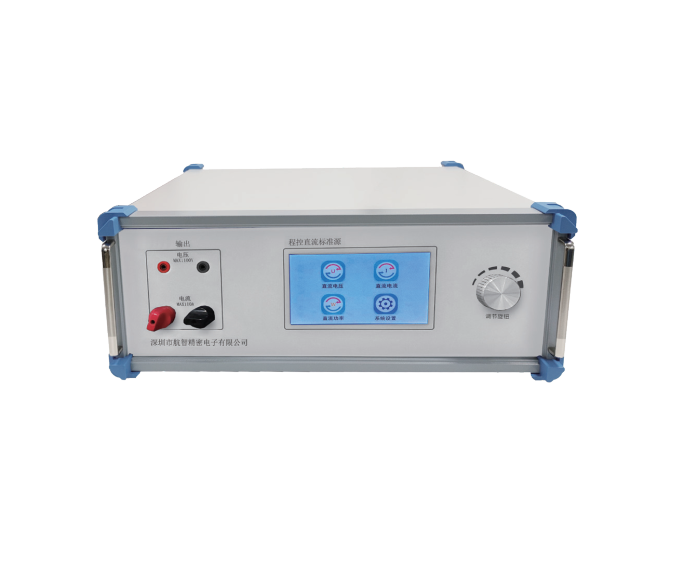

Hangzhi HZ6025 Programmable DC Standard Power Source (Level 0.05; 1000V)

Technical Parameter of DC Voltage Output:

Measurement Limit: 75mV, 300mV, 1V, 3V, 10V, 30V, 100V, 300V,1000V

Regulating Range: 0 ～ 110％ RG

Regulating Fineness: 0.01％ RG

Accuracy: ±(0.03%RG+0.02%RD)

Ripple Coefficient: ≤0.1%

Maximum Load: 20mA; 50mA(1000V)

Technical Parameter of DC Current (Table 1):

Measurement Limit: 100uA, 200uA,1mA, 2mA,10mA, 20mA, 100mA, 200mA, 1A, 2A

Regulating Range: 0 ～ 110%RG

Regulating Fineness: 0.01%RG

Accuracy: ±(0.03%RG+0.02%RD)

Ripple Coefficient: ≤0.2%

Maximum Load: 8V

Technical Parameter of DC Current (Table 2):

Measurement Limit: 10A, 25A, 50A, 100A

Regulating Range: 0 ～ 110%RG

Regulating Fineness: 0.01%RG

Accuracy: ±(0.03%RG+0.02%RD)

Ripple Coefficient: ≤0.2%

Maximum Load: 2V

Technical Index of Power:

Output Range: 1W ～ 25kW

Accuracy: 0.0005

Other Technical Index:

Power Supply: AC(220±22)V, (50±2)Hz

Net Weight: ≤15kg

Dimension: 472 × 445 × 135mm (W × D × H)

Ambient Operation Temperature & RH: 15℃～ 30℃ , 30% ～ 80%RH

Ambient Storage Temperature & RH: -20℃～ 70℃ , ＜ 95%RH

Note: The final dimension and weight of package are subject to each lot of production
