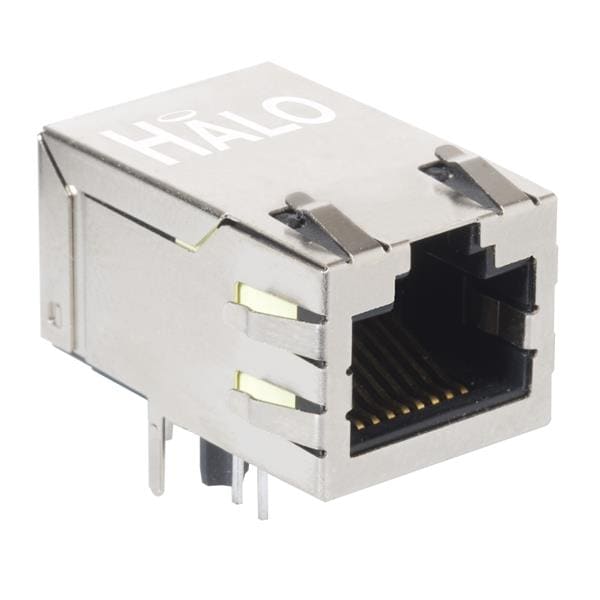

HALO Electronics HFJT1-PP50RL Modular 100BASE-T 1x1 Tab Up RJ45 w/MAG PIP STD

Color: Black

Gender: Jack (Female)

Shielding: Shielded, EMI Fingers

USOC Codes: RJ45

Application: 10/100 Base-TX

Unit Weight: 12.327 g

Configuration: 1x1

Tab Direction: Tab Up

Mounting Angle: Right Angle

Mounting Style: Through Hole

Contact Plating: Gold

Number of Ports: 1 Port

Termination Style: Solder

Number of Contacts: 8 Contact

Number of Positions: 8 Position

Performance Category: Cat 5

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C

Number of Positions / Contacts per Port: 8P8C
