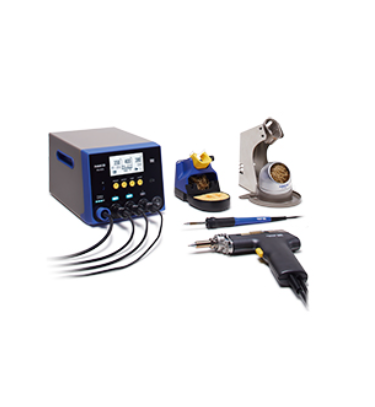

HAKKO FX-973 3-port Rework Station (50 ~ 450°C)

Power consumption: 400 W

Temperature range: 50 to 450℃

With heavy-duty soldering iron connected: 50 to 500℃

With desoldering tool connected: 330 to 450℃

Temperature stability: ±3℃ (At idle temperature)

With heavy-duty soldering iron and desoldering tool connected: ±5℃ (At idle temperature)

Station

Output Voltage: AC 24 V

Vacuum generator: Vacuum pump, double cylinder type

Vacuum pressure (max.): 80 kPa (600 mmHg)

Suction flow: 15 L/min.

Dimensions: 158 (W) × 135 (H) × 254 (D) mm

Weight: 5.3 kg

Handpiece (FX-9701 soldering iron)

Power consumption: 95 W (24 V)

Tip to ground resistance: ＜2 Ω

Tip to ground potential: < 2 mV

Heating element: Composite heater

Cord length: 1.2 m

Total length: 206 mm (with T39-D24 tip)

Weight: 31 g (with T39-D24 tip)

Handpiece (FR-4103 desoldering tool)

Power consumption: 140 W (24 V)

Nozzle to ground resistance: < 2 Ω

Nozzle to ground potential: < 2 mV

Heating element: Composite heater

Standard nozzle: 1.0 mm dia. S type (No. N61-05)

Cord length: 1.2 m

Total length: 168 mm (with N61-05 nozzle)

Weight: 190 g (with N61-05 nozzle)
