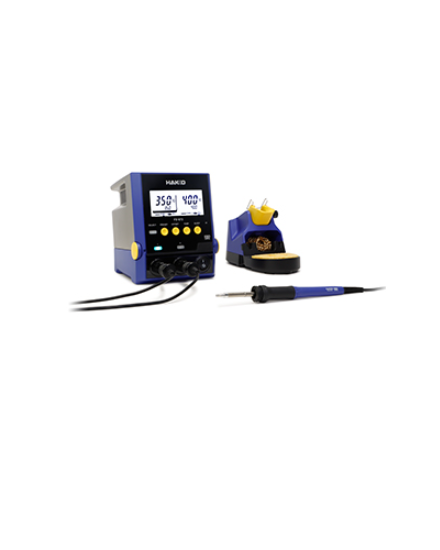

HAKKO FX-972-84 Soldering Station (50 ~ 450℃)

Power consumption: 200 W

Temperature range: 50 to 450℃

With heavy-duty soldering iron connected: 50 to 500℃

Temperature stability: ±3℃ (At idle temperature)

With heavy-duty soldering iron connected: ±5℃ (At idle temperature)

Station

Output voltage: AC 24 V

Dimensions:

When tilted: 126 (W) × 151 (H) × 149 (D) mm

When not tilted: 126 (W) × 151 (H) × 136 (D) mm

Weight: 2.8 kg

Soldering Iron

Power consumption: 95 W (24 V)

Tip to ground resistance: ＜2 Ω

Tip to ground potential: ＜2 mV

Heating element: Composite heater

Cord length: 1.2 m

Total length: 206 mm (with T39-D24 tip)

Weight: 31 g (with T39-D24 tip)
