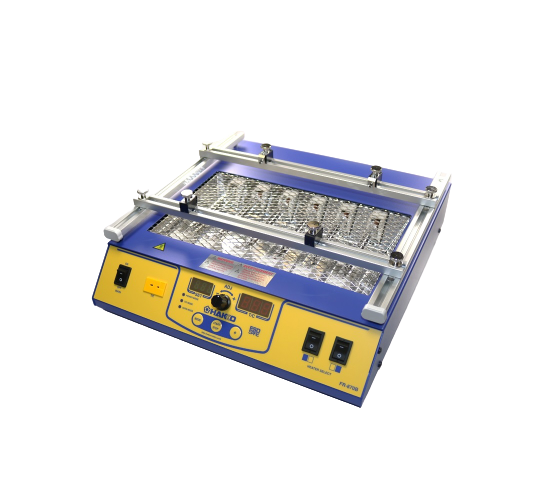

HAKKO FR870B W / 3 Wired Cord & Bs Plug Preheater

Power consumption: AC230V: 1,240W

Operation mode:

Power mode, T/C mode

Auto power mode, auto T/C mode

Setting range : Power mode: 0 to 100%

Setting range : T/C mode: 50 to 200ºC

Setting range : Set time: 0 to 999 seconds

Heating element: High efficiency carbon heater

Effective heated area: 190(W)×80(D)mm

Heater area dimensions: 248(W)×140(D)mm

Heater zone: 2

Temperature sensor: K-type thermocouple

Heater lifetime: 2,100hours

Heater control:

Power mode : Percentage-based system

T/C mode : PID control

External connections: Start signal input possible

Dimensions: 296(W)×100(H)×311(D)mm

Weight: 3.2 kg

Packing List: Preheater unit, thermocouple (type K), power cord, heater lamp (spare), instruction manual

Optional Power:

AC100V: 500W

AC110V: 610W

AC120V: 730W

AC220V: 1,130W

AC230V: 1,240W

Datasheet
