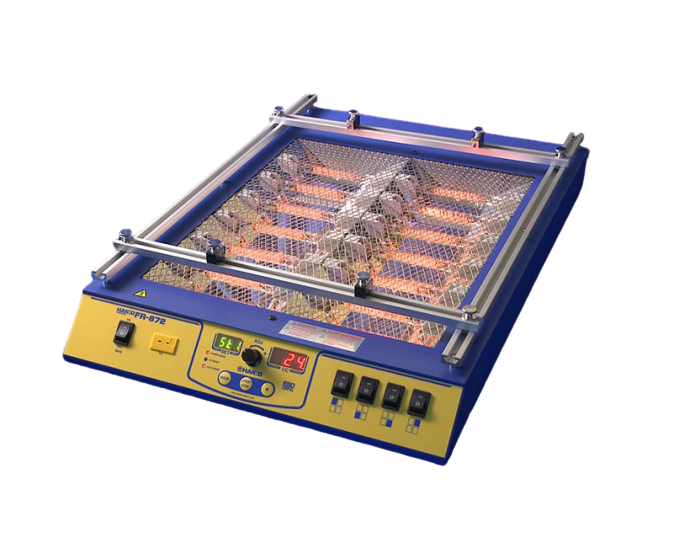

HAKKO FR-872 W / 3 Wired Cord & Bs Plug Preheater

Power consumption: AC230V: 1,250W

Operation mode:

Power mode, T/C mode

Auto power mode, auto T/C mode

Setting range : Power mode: 0 to 100%

Setting range : T/C mode: 50 to 200ºC

Setting range : Set time: 0 to 999seconds

Heating element: High efficiency carbon heaater

Effective heated area: 224(W)×266(D)mm

Heater area dimensions: 286(W)×350(D)mm

Heater zone: 4

Temperature sensor: K-type thermocouple

Heater lifetime: 2,100hours

Heater control:

Power mode : Percentage-based system

T/C mode : PID control

External connections: Start signal input possible

Dimensions:

AC100-120V：360(W)×97(H)×535(D)mm

AC220-230V： 360(W)×97(H)×524(D)mm

Weight: 5.6kg

Packing List: Preheater unit, thermocouple (type K), power cord, heater lamp (spare), instruction manual
