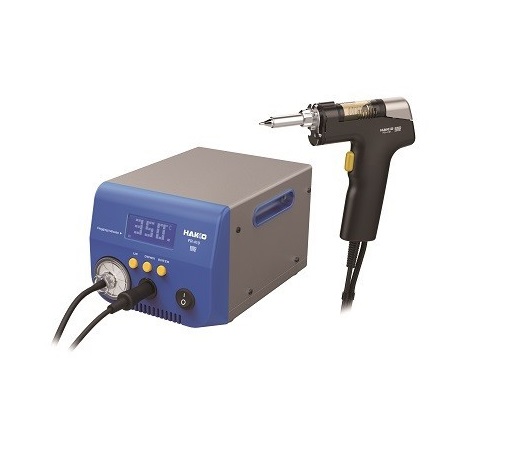

HAKKO FR-410 W / 3 Wired Cord With No Plug W / FR-4103 Desoldering Tool

Power consumption: 190W

Temperature range: 330 to 450ºC

Temperature stability: ±5ºC at idle temperature

・ Station

Output voltage: AC 24V

Vacuum generator: Vacuum pump, double cylinder type

Vacuum pressure: 80kPa (600mmHg)

Suction flow: 15L/min.

Dimensions: 165(W)×137(H)×244(D)mm

Weight: 4.8kg

・Desoldering Tool

Power consumption: 140W (24V)

Nozzle to ground resistance: < 2Ω

Nozzle to ground potential: < 2 mV

Heating element: Composite heater

Standard nozzle: Φ1.0mm S type (No.N61-05)

Cord length: 1.2m

Total length: 168mm (with Φ1.0mm S type nozzle)

Weight: 190g (with Φ1.0mm S type nozzle)

Packing list: Station, Desoldering tool (FR-4103), Power cord, Iron holder (with cleaning wire), Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4]), Instruction manual
