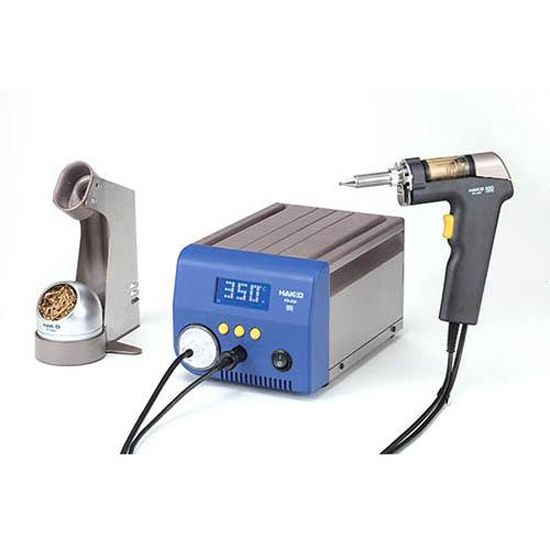

HAKKO FR-400 W / 3 Wired Cord With No Plug W / FR-4003 Desoldering Tool

Power consumption: 320W

Temperature range: 350 to 500ºC

Temperature stability: ±5ºC at idle temperature

・ Station

Output voltage: AC 29V

Vacuum generator: Vacuum pump, double cylinder type

Vacuum pressure: 80kPa (600mmHg)

Suction flow: 15L/min.

Dimensions: 166(W)×137(H)×264(D)mm

Weight: 5.7kg

・Desoldering Tool

Power consumption: 300W (29V)

Nozzle to ground resistance: <2Ω

Nozzle to ground potential: <2mV

Heating element: Composite heater

Standard nozzle: Φ1.0mm type (No.N60-02)

Cord length: 1.2m

Total length: 183mm (with Φ1.0mm nozzle)

Weight: 270g (with Φ1.0mm nozzle)

Packing list: Station, Desoldering tool（FR-4003）, Power cord, Iron holder (with cleaning wire), Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4]), Instruction manual
