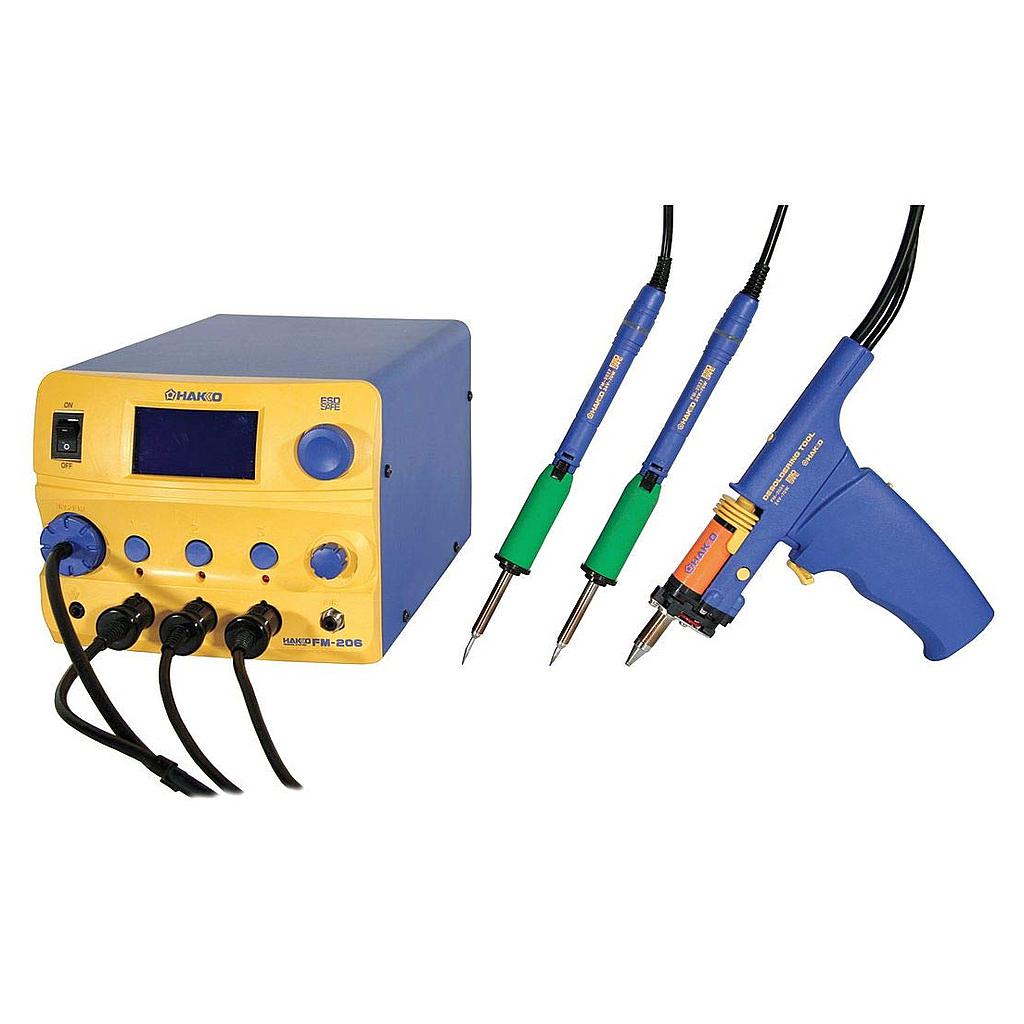

HAKKO FM-206 W/3 Wired Cord But No Plug Rework System

Power consumption: 410W (Max.)

Temperature range:

FM-2027: 200 to 450ºC

FM-2029: 100 to 550ºC

Temperature stability: ±5ºC at idle temperature

・Station

Output voltage: AC 24V

Vacuum generator: Vacuum pump, cylinder type

Vacuum pressure: 80kPa (600mmHg) (Max.)

Suction flow: 14L/min.

Air flow: 6L/min. (Max.)

Dimensions: 162(W)×136(H)×245(D)mm

Weight: 6.2kg

・Soldering Iron (FM-2027)

Power consumption: 70W (24V)

Tip to ground resistance: <2Ω

Tip to ground potential: <2mV

Heating element: Composite heater

Cord length: 1.2m

Total length: 188mm (with 2.4D tip)

Weight: 30g (with 2.4D tip)

・Desoldering Tool (FM-2024)

Power consumption: 70W (24V)

Nozzle to ground resistance: <2Ω

Nozzle to ground potential: <2mV

Heating element: Composite heater

Cord length: 1.2m

Total length: 180mm (with Φ1.0mm nozzle)

Weight: 65g (with Φ1.0mm nozzle)

・Hot air Handpiece (FM-2029)

Power consumption: 140W (24V)

Nozzle to ground resistance: <2Ω

Nozzle to ground potential: <2mV

Heating element: Composite heater

Cord length: 1.2m

Total length: 232mm (with Φ4.0mm nozzle)

Weight: 50g (with Φ4.0mm nozzle)

Packing List: Station, Power cord, FM-2024 conversion kit, Tip tray, FM-2027 conversion kit, FM-2029 conversion kit, Instruction manual
