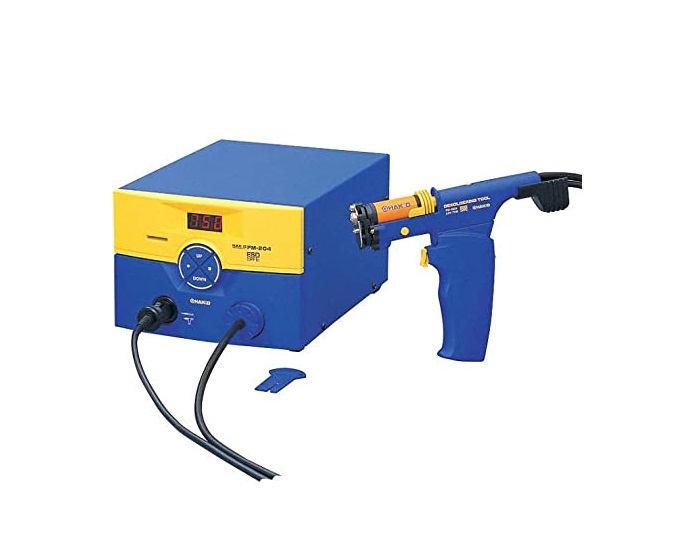

HAKKO FM-204 3 Wired Cord But No Plug Desoldering Tool

Power consumption: 120W

Temperature range:

FM-2024 : 350 to 450ºC

FM-2026/2027 : 200 to 450ºC

Temperature stability: ±5ºC at idle temperature

・ Station

Output voltage: AC 24V

Vacuum generator: Vacuum pump, double cylinder type

Vacuum pressure: Max. 80kPa (600mmHg)

Suction flow: 15L/min.

Dimensions: 160(W)×120(H)×225(D)mm

Weight: 3.7kg

・ Desoldering Iron

Power consumption: 70W (24V)

Tip to ground resistance: <2Ω

Tip to ground potential: <2mV

Heating element: Composite heater

Cord length: 1.2m

Total length: 180mm (with 2.4D nozzle)

Weight: 65 g (with 2.4D nozzle)

Packing list:

1. Main unit (HAKKO FM-204 station)

2. Iron holder (No. FH200-05; with tip cleaner)

3. Ceramic paper filter (10pcs.) (for replacement)

4. Cleaning drill (for heating element)

5. Filter pipe assemblies (2pcs.) (originally equipped to the unit and one for spare*5)

6. Control card

7. Desoldering tool (Model FM-2024)

8. Connecting cable

9. Nozzle remover

10. Handle (for gun configuration)

*11. Power cord

*12. Instruction manual

*13 Tip tray

Datasheet
