HAKKO FG465-06 PIN Plug W/Cal Report Footwear Tester

Rating: DC 24V 33mA

Measurement voltage: DC20V

Measurement range: upper evaluation limit:

1000 MΩ (1×109 Ω)

100 MΩ (1×108 Ω)

10 MΩ (1×107 Ω)

Measurement range: lower evaluation limit:

1 MΩ (1×106 Ω)

0.1 MΩ (1×105 Ω)

R < 0.1 MΩ (1×105 Ω)

Measurement range: conductivity evaluation:

R < 0.1 MΩ (1×105 Ω)

Evaluation level accuracy:

R < 0.1 MΩ: ±5％

0.1 MΩ ≤ R ≤ 100 MΩ: ±10％

100 MΩ <R: ±8％

Operation environment: Ambient temperature/humidity range : 0 to 40ºC, max.80% RH (without condensation)

Dimensions: 120(W)×30(H)×185(D)mm

Weight: 0.55kg (Including mounting base)

・Test plate

Cord length: 1.6m

Dimensions: 300(W)×30(H)×300(D)mm

Weight: 1.9kg

・AC adapter

Output voltage: DC24V

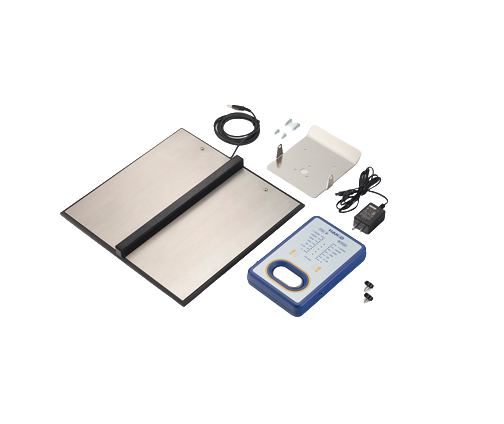

Packing list:

Unit, Mounting base, AC adapter*, Test plate, Mounting screw (qty 2)**, Pan head screw (qty 2), Wood screw (qty 2), Instruction manual

Datasheet
