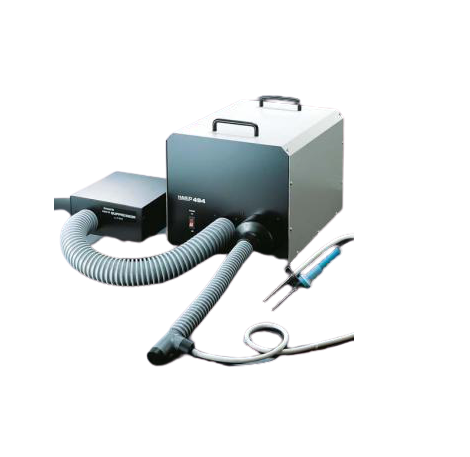

HAKKO 494 W/3 Wired Cord But No Plug Smoke Absorber

Power consumption: 50Hz: 150 W; 60Hz: 200 W

Noise level: With hose: 55 dB; Without hose: 71 dB

Suction capacity: 50Hz: 1.56 m³/min; 60Hz: 1.82 m³/min

Static pressure: 50Hz: 2.3 kPa (240 mmAq.); 60Hz: 3.2 kPa (240 mmAq.)

Dimensions: 322 (W) x 300 (H) x 386 (D) mm

Weight: 18 kg

Packing list:

Unit, Filter case, Filter cap, Pre-filter (5 pcs), Duct (3 m), End cover, Main Filter (5 pcs), Inlet socket, Exhaust duct (5 m),

Nylon strap, Suppressor, Absorption pipe set, Instruction manual

Option:

Absorption pipe set C1540 (Any with a handle ø16 mm or smaller)

Parallel piping joint B1246
