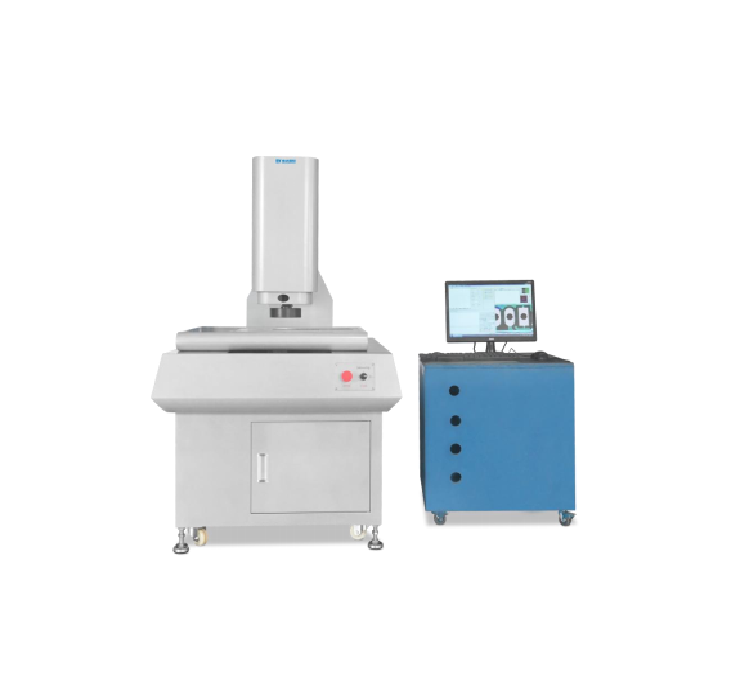

HAIDA HUD-U3020CNC Automatic Video Measuring Machine (300x200x200)

Measuring (mm) 300x200x200

Dimension (mm) 1300x920x1600

Instrument weight (kg) 440

Accuracy: X,Y： (2.8+L/200) μm

Z： (5+L/200) μm

Repeat-ability: 3μm

Grating ruler resolution: 0.001mm

CCD: 1/3"High-resolution color CCD 600TV line(SONY Chip)

Zoom lens: 0.75～4.5X high-definition manual zoom lens

Image magnification: 36～220X

Working distance: 92mm

Measuring software: HUD-CNC

Upper light source: Adjustable 6 ring 8 area surface ring LED cold light source

Under light source: Parallel light design, Promise continuously adjustable LED cold light source

Motor: 200W servo motor

Guide rails: High precision linear guide made in Taiwan

Mode of operation: Program control or joystick

Operating Voltage: Single phase, 220V (AC) 50Hz
